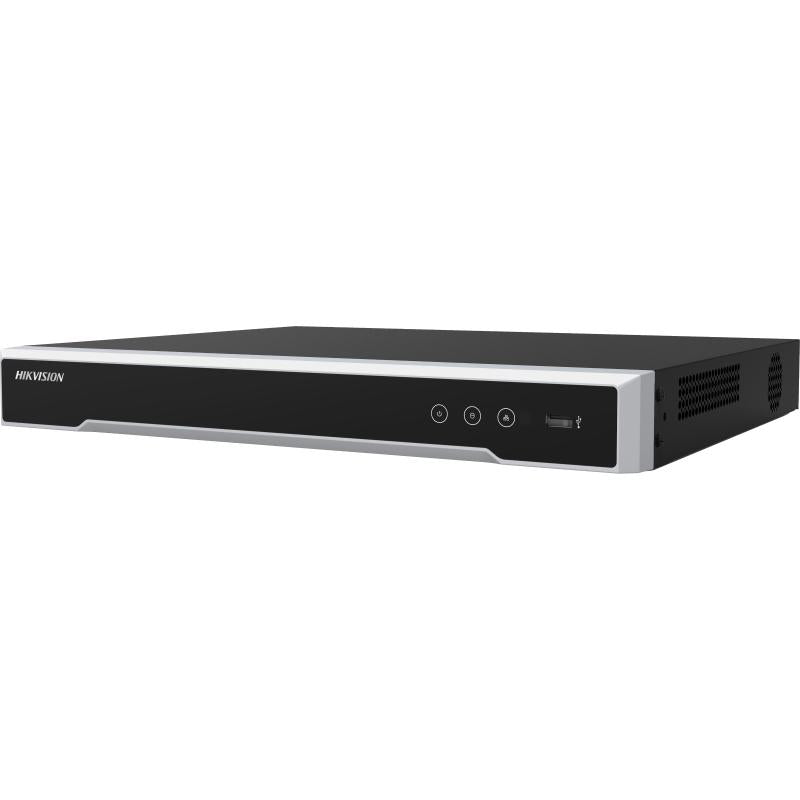

HIKVISION DS-7616NI-Q2 16-ch 1U 4K | H.265+/H.265/H.264+/H.264 VIDEO FORMATS | Up to 160 Mbps INCOMING BANDWIDTH | NVR

₱5,397
₱5,208.00 Discounted Price OR Freebie
₱5,397.00 3 Months 0% or Straight Credit Card ( ₱1,799.00 / Mo.)
₱6,179.00 12 Months Credit Card ( ₱514.00 / Mo.)
CARRY-IN WARRANTY
Makotek customers are responsible for sending or mailing the item for repair and thereafter, picking up the repaired item themselves.
Ask a Question

For Pre-Order fill-up this form

Guarantee Safe Checkout

HIKVISION DS-7616NI-Q2 16-ch 1U 4K | H.265+/H.265/H.264+/H.264 VIDEO FORMATS | Up to 160 Mbps INCOMING BANDWIDTH | NVR
HIKVISION DS-7616NI-Q2 16-ch 1U 4K | H.265+/H.265/H.264+/H.264 VIDEO FORMATS | Up to 160 Mbps INCOMING BANDWIDTH | NVR
₱5,397

16-ch 1U 4K NVR

  • Up to 16-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
  • Up to 160 Mbps incoming bandwidth

Motion Detection 2.0

Human/Vehicle Analysis : 4-ch

Video and Audio

IP Video Input: 16-ch
Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 80 Mbps
HDMI Output:
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA Output:
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode: HDMI/VGA simultaneous output
Audio Output:: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format: H.265+,H.265,H.264+,H.264
Recording Resolution:
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding Capability:
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Synchronous playback: 16-ch

Network

Remote Connection: 32
Network Protocol:
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA: 2 SATA interfaces
Capacity: Up to 8 TB capacity for each disk
USB Interface: 2 × USB 2.0

General:

Power Supply: 12 VDC, 3.33 A
Consumption: ≤ 15 W (without HDD)
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10 to 90 %
Chassis: 1U chassis
Dimension (W × D × H): 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight: ≤ 1.8 kg (without HDD, 4.0 lb.)
