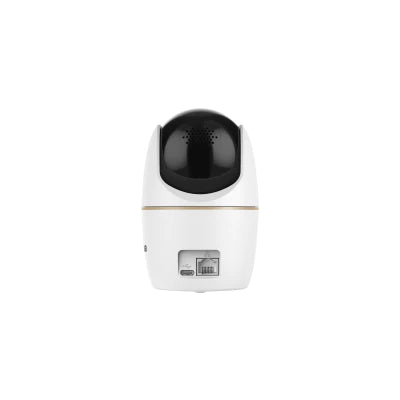

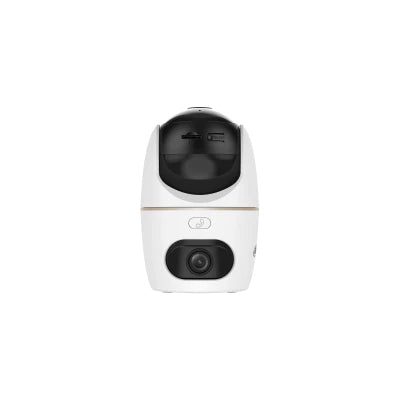

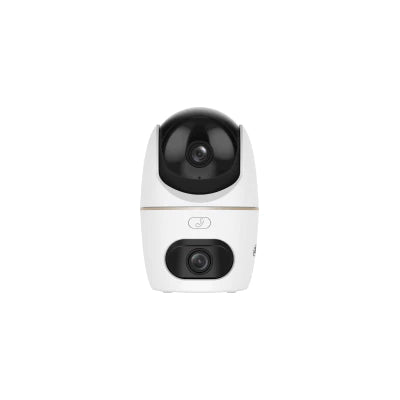

DAHUA DH-HTP1539DD-IL 5+5MP INDOOR WI-FI DUAL-LENS PAN & TILT CAMERA CAMERA

Camera

Fixed Lens

Image Sensor

1/3" CMOS

Max. Resolution

2880 (H) × 1620 (V)

Illumination Distance

Up to 30 m (98.43 ft) (IR)

Illuminator Number

2 (IR LED)

Angle Adjustment

0° to 15°

Lens Type

Fixed-focal

Focal Length

3.6 mm

Max. Aperture

F2.0

Field of View

H: 86°; V: 46°; D: 104°

PT Lens

Image Sensor

1/3" CMOS

Max. Resolution

2880 (H) × 1620 (V)

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator Number

2 (IR LED); 1 (Warm light)

Angle Adjustment

Pan: 0° to 349°

Tilt: –5° to 90°

Lens Type

Fixed-focal

Focal Length

3.6 mm

Max. Aperture

F2.0

Field of View

H: 86°; V: 46°; D: 104°

Intelligence

Human Detection

Yes

Pet Detection

Yes

Audio and Video

Video Compression

H.265

Video Frame Rate

Main stream: 2880 × 1620@15 fps
sub stream: 640 × 360@15 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate

H.265: 768 kbps–4096 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

Yes

Image Rotation

0°/180°

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 G, EIRP≤20 dBm & 5.15–5.25 GHz, 5 G, EIRP≤23 dBm@5150–5250 MHz

Wi-Fi Pairing

Bluetooth pairing

Storage

Micro SD card (support max. 256 GB)

Management Software

DMSS

Mobile Client

iOS;Android

Function

Abnormal Sound Alarm

Yes

Privacy Mode

Yes

General

Certifications

CE

Power Supply

5 VDC

Power Consumption

Basic: 2.5 W;
Max.: 5.4 W (pulling stream+ IR + PT rotation)

Operating Temperature

–10 °C to +45 °C (–4 °F to +113 °F)

Operating Humidity

≤95% (RH), non-condensing

Casing Material

Plastic

Product Dimensions

Φ80.9 mm × 125.7mm (3.19" × Φ4.95")

Net Weight

233 g (0.51 lb)
