Save ₱1,000.00

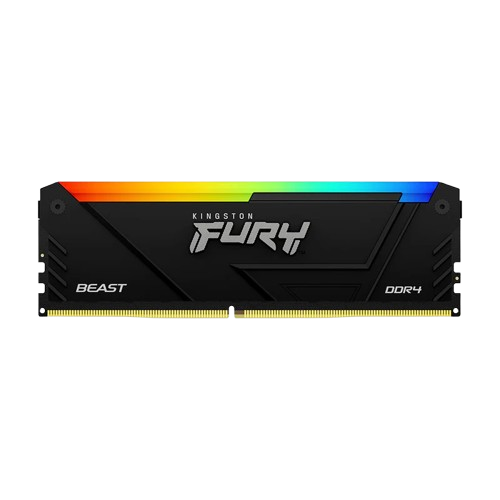

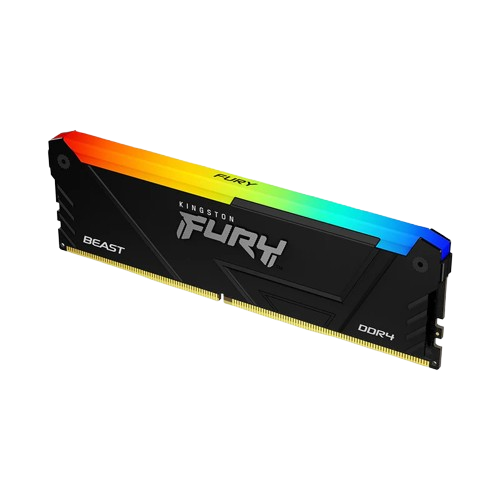

KINGSTON KF436C18BB2A/16 FURY BEAST BLACK 16GB DDR4 | 3600 MHZ | CL18-22-22 | 1.35V | UDIMM | 12 MONTHS WARRANTY MEMORY

₱4,997
₱5,997
₱4,822.00 Discounted Price OR Freebie
₱4,997.00 3 Months 0% or Straight Credit Card ( ₱1,665.00 / Mo.)
₱5,721.00 12 Months Credit Card ( ₱476.00 / Mo.)
CARRY-IN WARRANTY
Makotek customers are responsible for sending or mailing the item for repair and thereafter, picking up the repaired item themselves.
Ask a Question

For Pre-Order fill-up this form

Guarantee Safe Checkout

KINGSTON KF436C18BB2A/16 FURY BEAST BLACK 16GB DDR4 | 3600 MHZ | CL18-22-22 | 1.35V | UDIMM | 12 MONTHS WARRANTY MEMORY
KINGSTON KF436C18BB2A/16 FURY BEAST BLACK 16GB DDR4 | 3600 MHZ | CL18-22-22 | 1.35V | UDIMM | 12 MONTHS WARRANTY MEMORY
₱4,997
₱5,997

KINGSTON KF436C18BB2A/16

16GB 2G x 64-Bit
DDR4-3600 CL18 288-Pin DIMM

DESCRIPTION

Kingston FURY KF436C18BB2A/16 is a 2G x 64-bit (16GB)
DDR4-3600 CL18 SDRAM (Synchronous DRAM) 1Rx8, memory
module, based on eight 2G x 8-bit FBGA components per module.
Each module kit supports Intel® Extreme Memory Profiles (Intel®
XMP) 2.0. Each module has been tested to run at DDR4-3600 at a
low latency timing of 18-22-22 at 1.35V. The SPDs are programmed
to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC standard
electrical and mechanical specifications are as follows:

SPECIFICATIONS

CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
17 cycles
45.75ns(min.)
350ns(min.)
32ns(min.)
94 V - 0
0o
 C to +70o
 C
-40o
 C to +85o
 C

FEATURES

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.69” (43mm), w/heatsink
