Save ₱2,200.00

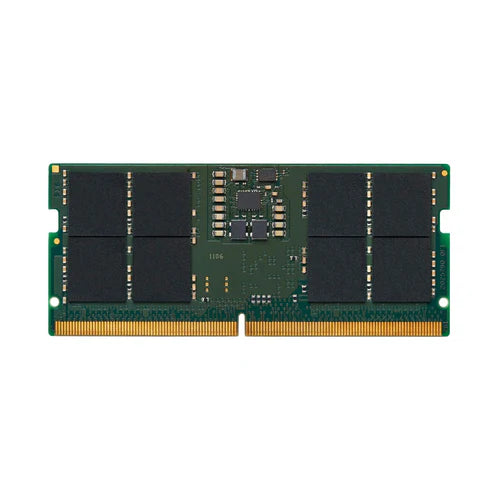

KINGSTON KVR56S46BS8-16 16GB DDR5 SODIMM | 5600 MHZ | 16GB (1X16GB) | CL46 | 1.2V | NON-ECC | 12 MONTHS WARRANTY MEMORY

₱4,797
₱6,997
₱4,629.00 Discounted Price OR Freebie
₱4,797.00 3 Months 0% or Straight Credit Card ( ₱1,599.00 / Mo.)
₱5,492.00 12 Months Credit Card ( ₱457.00 / Mo.)

Available at:

MAKOTEK CDO ,
CARRY-IN WARRANTY
Makotek customers are responsible for sending or mailing the item for repair and thereafter, picking up the repaired item themselves.
Ask a Question

Guarantee Safe Checkout

KINGSTON KVR56S46BS8-16 16GB DDR5 SODIMM | 5600 MHZ | 16GB (1X16GB) | CL46 | 1.2V | NON-ECC | 12 MONTHS WARRANTY MEMORY
KINGSTON KVR56S46BS8-16 16GB DDR5 SODIMM | 5600 MHZ | 16GB (1X16GB) | CL46 | 1.2V | NON-ECC | 12 MONTHS WARRANTY MEMORY
₱4,797
₱6,997

KVR56S46BS8-16
16GB 1Rx8 2G x 64-Bit
PC5-5600 CL46 262-Pin SODIMM

DESCRIPTION

This document describes ValueRAM's KVR56S46BS8-16 is a 2G x
64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8,
memory module, based on eight 2G x 8-bit FBGA components. The
SPD is programmed to JEDEC standard latency DDR5-5600 timing of
46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.
The electrical and mechanical specifications are as follows:

SPECIFICATIONS

CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
46 cycles
48ns(min.)
295ns(min.)
32ns(min.)
94 V - 0
0o
 C to +85o
 C
-55o
 C to +100o
 C

FEATURES

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
