Save ₱500.00

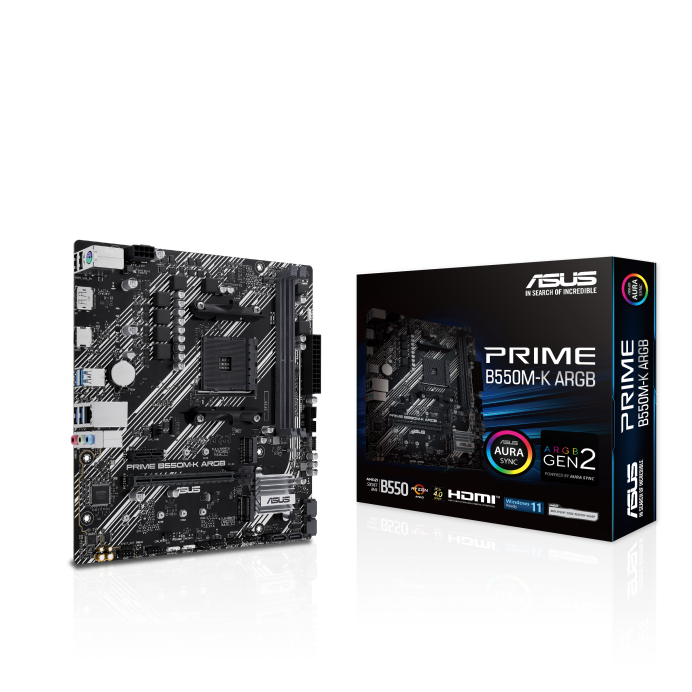

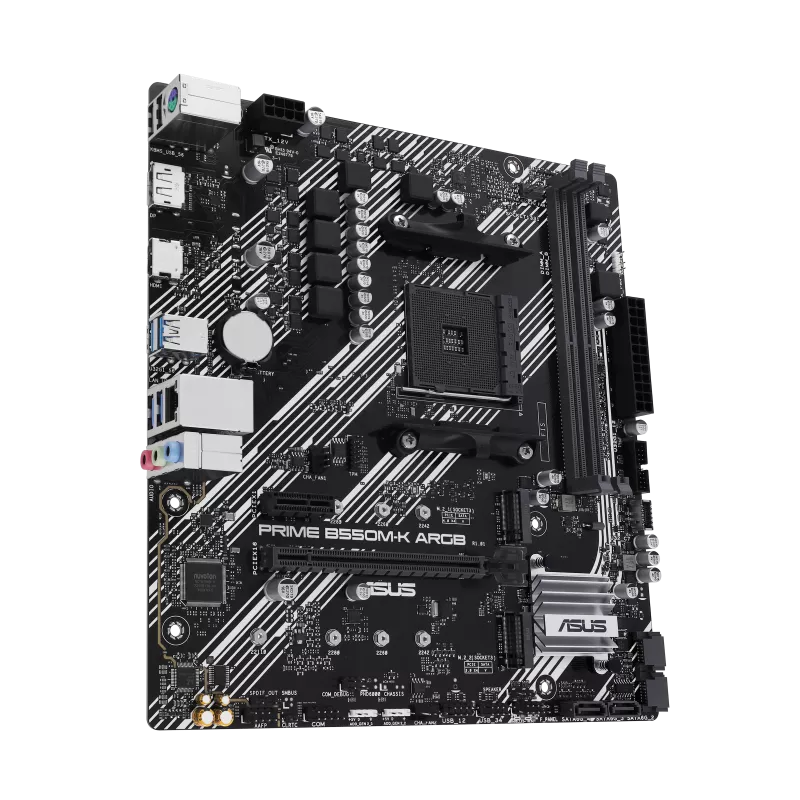

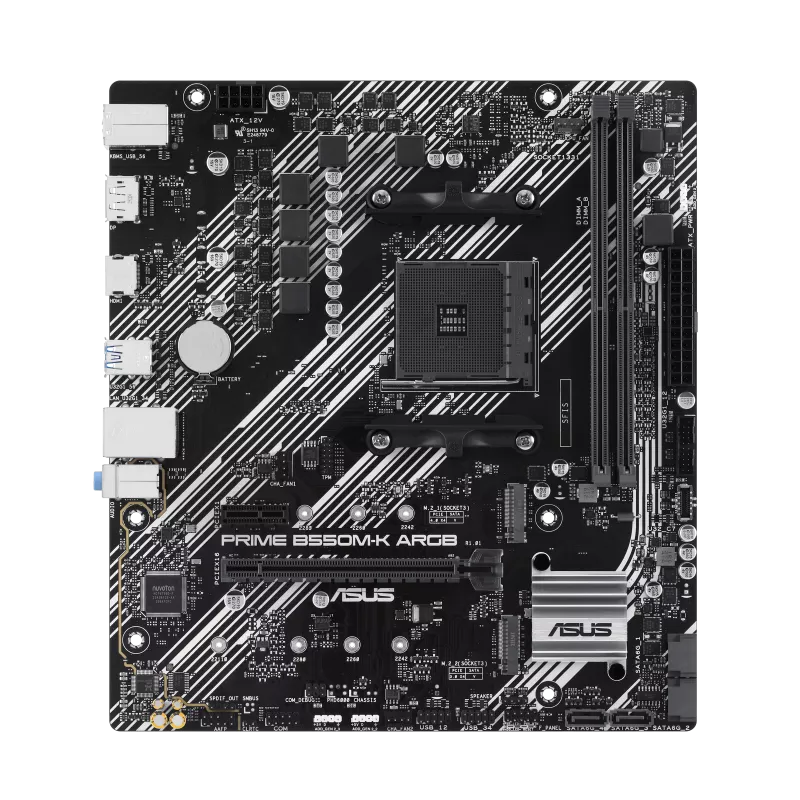

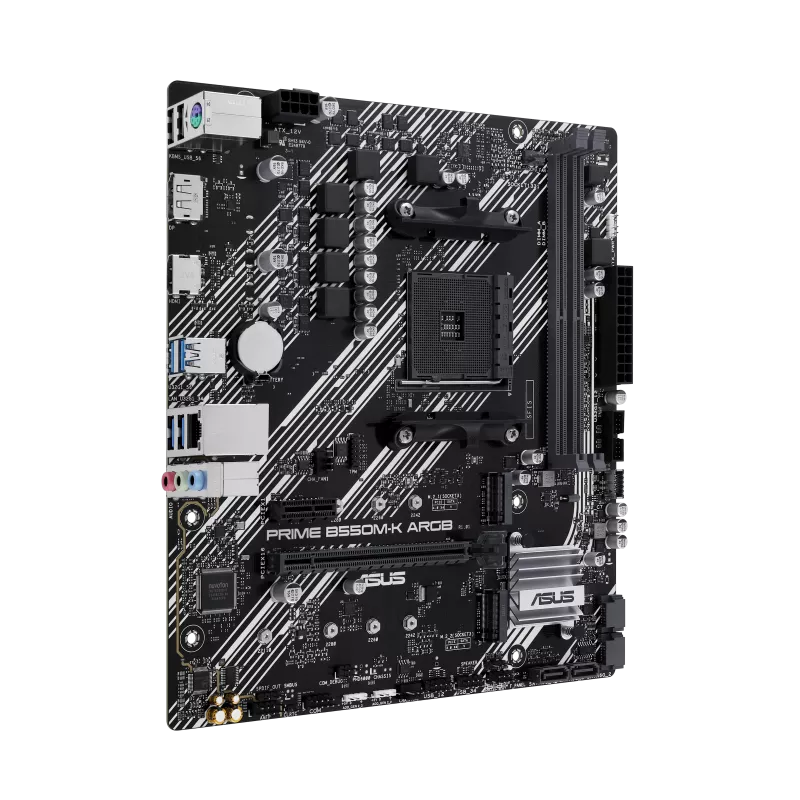

ASUS PRIME B550M-K ARGB | AM4 | M-ATX | PCIE 4.0 | REALTEK 1GB ETHERNET | SATA 6GBPS | AURA SYNC | 12 MONTHS WARRANTY MOTHERBOARD

₱5,497
₱5,997
₱5,304.00 Discounted Price OR Freebie
₱5,497.00 3 Months 0% or Straight Credit Card ( ₱1,832.00 / Mo.)
₱6,294.00 12 Months Credit Card ( ₱524.00 / Mo.)

Available at:

MAKOTEK CDO ,
CARRY-IN WARRANTY
Makotek customers are responsible for sending or mailing the item for repair and thereafter, picking up the repaired item themselves.
Ask a Question

Guarantee Safe Checkout

ASUS PRIME B550M-K ARGB | AM4 | M-ATX | PCIE 4.0 | REALTEK 1GB ETHERNET | SATA 6GBPS | AURA SYNC | 12 MONTHS WARRANTY MOTHERBOARD
ASUS PRIME B550M-K ARGB | AM4 | M-ATX | PCIE 4.0 | REALTEK 1GB ETHERNET | SATA 6GBPS | AURA SYNC | 12 MONTHS WARRANTY MOTHERBOARD
₱5,497
₱5,997

AMD B550 (Ryzen™ AM4) mATX motherboard with dual M.2 slots, PCIe 4.0, Realtek 1Gb Ethernet, DisplayPort/HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 1 ports, front USB 3.2 Gen 1 Type-C® and Aura Sync

  • Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AMD AM4 Socket: Ready for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Ultrafast Connectivity: PCIe 4.0, dual M.2 slots, Realtek 1Gb Ethernet, rear USB 3.2 Gen 1 ports and front USB 3.2 Gen 1 Type-C®
  • Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware



    PRIME B550M-K ARGB

    News & Updates
    Socket AM4
    CPU
    AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors*
    * Refer to www.asus.com for CPU support list.
    Chipset
    AMD B550 Chipset
    Memory
    2 x DIMM slots, Max. 64GB, DDR4 5100(OC)/4866(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*
    Dual Channel Memory Architecture
    * ECC memory (ECC mode) support varies by CPU.
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
    Graphics
    1 x DisplayPort**
    1 x HDMI™ port***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
    Expansion Slots
    AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x16 mode)
    AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
    1 x PCIe 3.0 x16 slot (supports x16 mode)
    AMD B550 Chipset
    1 x PCIe 3.0 x1 slot
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    Storage
    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
    AMD B550 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
    4 x SATA 6Gb/s ports
    * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
    Ethernet
    1 x Realtek 1Gb Ethernet
    USB
    Rear USB (Total 6 ports)
    4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

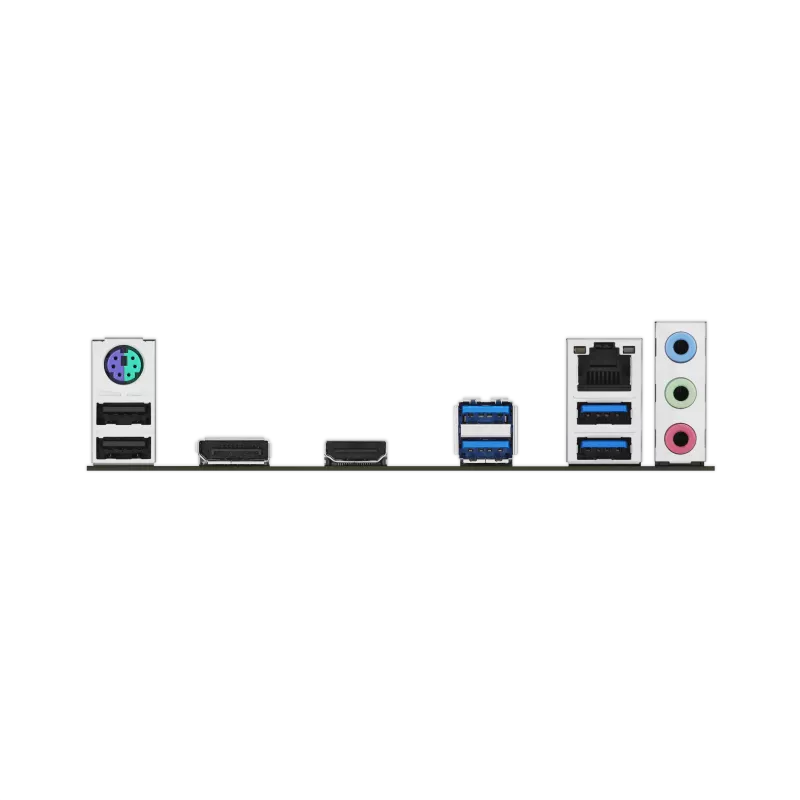

    Back Panel I/O Ports
    4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x DisplayPort
    1 x HDMI™ port
    1 x Realtek 1Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port
    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x Speaker header
    1 x SPI TPM header (14-1 pin)
    1 x 10-1 pin System Panel header
    Special Features
    ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage Protection
    - SafeSlot Core
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - Aluminum heatsink design
    Aura Sync
    - Addressable Gen 2 headers
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    AI Suite 3
    - Performance And Power Saving Utility
     TurboV EVO
     EPU
     DIGI+ VRM
     Fan Xpert 2+
    - EZ update
    ASUS CPU-Z
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    BIOS
    128 Mb Flash ROM, UEFI AMI BIOS
    Manageability
    WOL by PME, PXE

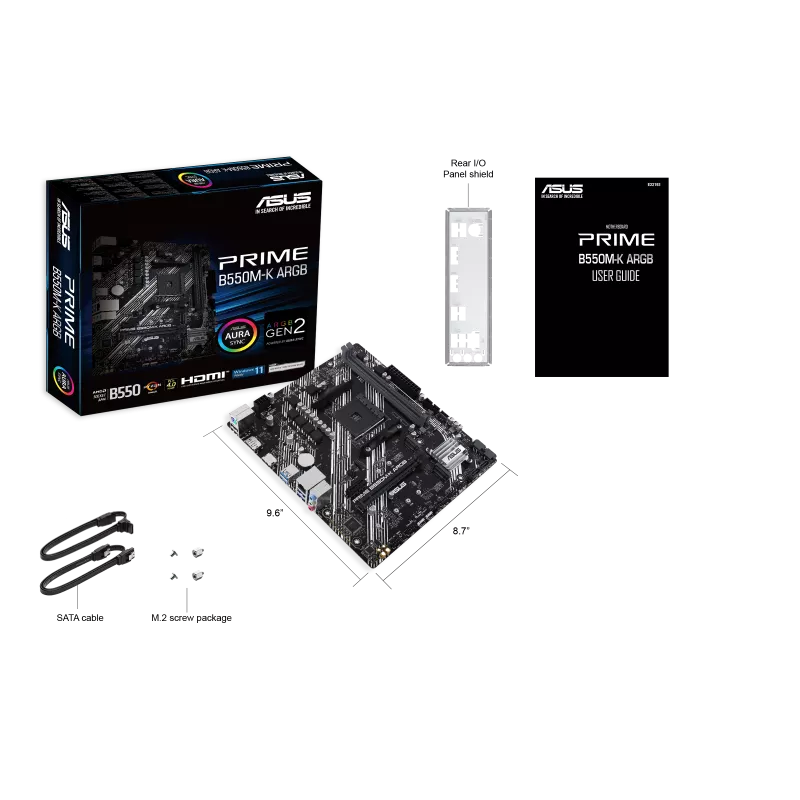

    Accessories
    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous

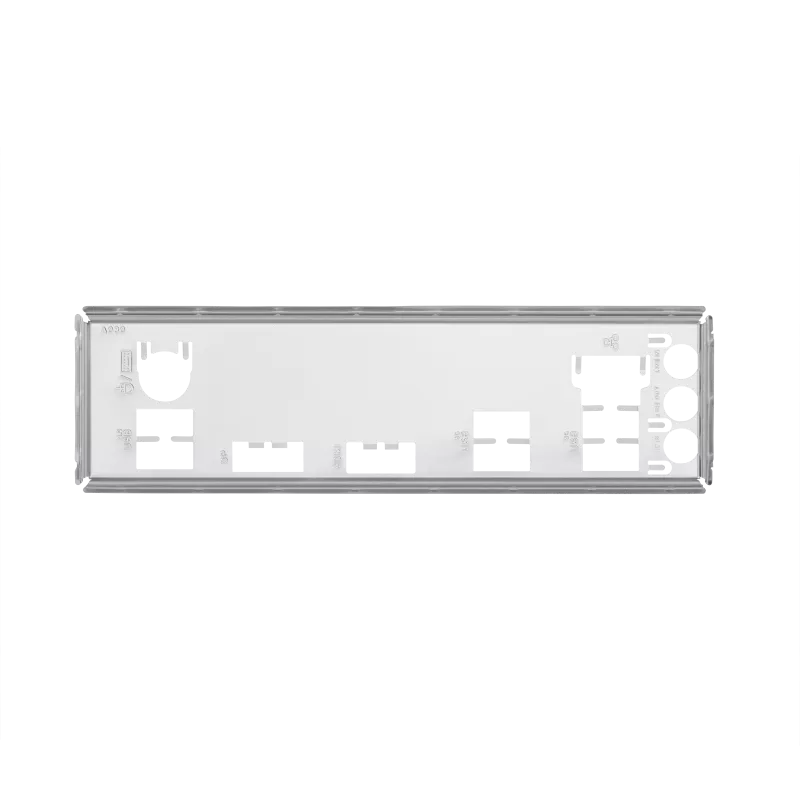

    1 x I/O Shield
    1 x Screw package for M.2 SSD
    Documentation
    1 x User guide
    Operating System
    Windows® 11, Windows® 10 64-bit
    Form Factor
    micro-ATX Form Factor
    9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
