GIGABYTE H510M-K V2 | GBE LAN | ANTI-SULFUR RESISTOR | SMART FAN 5 | INTEL ULTRA DURABLE | 12 MONTHS WARRANTY | MOTHERBOARD

ā‚±4,597
ā‚±4,436.00 Discounted Price OR Freebie
ā‚±4,597.00 3 Months 0% or Straight Credit Card ( ā‚±1,532.00 / Mo.)
ā‚±5,263.00 12 Months Credit Card ( ā‚±438.00 / Mo.)
CARRY-IN WARRANTY
Makotek customers are responsible for sending or mailing the item for repair and thereafter, picking up the repaired item themselves.
Ask a Question

For Pre-Order fill-up this form

Guarantee Safe Checkout

GIGABYTE H510M-K V2 | GBE LAN | ANTI-SULFUR RESISTOR | SMART FAN 5 | INTEL ULTRA DURABLE | 12 MONTHS WARRANTY | MOTHERBOARD
GIGABYTE H510M-K V2 | GBE LAN | ANTI-SULFUR RESISTOR | SMART FAN 5 | INTEL ULTRA DURABLE | 12 MONTHS WARRANTY | MOTHERBOARD
ā‚±4,597

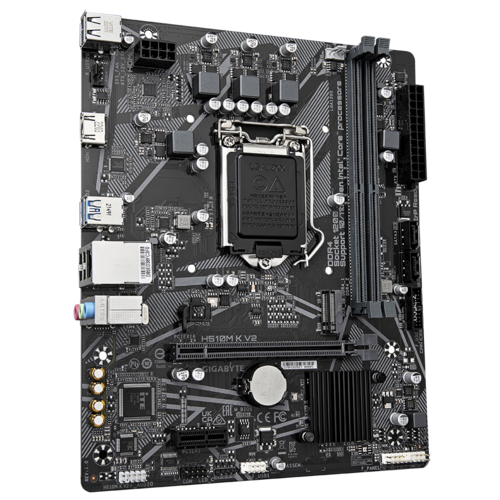

Intel Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5


  • Supports 11th/10th Gen IntelCore Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • GbE LAN with Bandwidth Management
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
CPU
LGA1200 package:
  1. 11th Generation Intel Core i9 processors/IntelĀ Core i7 processors/IntelĀ Core i5 processors
  2. 10th Generation IntelCore i9 processors/IntelCore i7 processors/IntelCore i5 processors/IntelCore i3 processors/IntelPentiumprocessors/IntelCeleronprocessors
  3. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. IntelH470 Express Chipset
Memory
  1. 11th Generation IntelCore i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  2. 10th Generation IntelCore i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MT/s memory modules
  3. 10th Generation IntelCore i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MT/s memory modules
  4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-IntelHD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
  1. RealtekAudio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
  1. RealtekGbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
  2. 2 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID5 support for SATA storage devices
USB
Chipset:
  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x RGB LED strip header
  6. 1 x M.2 Socket 3 connector
  7. 2 x SATA 6Gb/s connectors
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 1 x USB 2.0/1.1 header
  12. 1 x serial port header
  13. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x HDMI port
  2. 2 x USB 3.2 Gen 1 ports
  3. 4 x USB 2.0/1.1 ports
  4. 1 x RJ-45 port
  5. 3 x audio jacks
