Save ₱800.00

ASUS PRIME B650M-A WIFI II | 4 DIMM SLOTS | DDR5 | PCI-E 5.0 | REALTEK 2.5GB | WIFI | AM5 | 12 MONTHS WARRANTY MOTHERBOARD

₱9,697
₱10,497
₱9,357.00 Discounted Price OR Freebie
₱9,697.00 3 Months 0% or Straight Credit Card ( ₱3,232.00 / Mo.)
₱11,103.00 12 Months Credit Card ( ₱925.00 / Mo.)

Available at:

MAKOTEK CDO
CARRY-IN WARRANTY
Makotek customers are responsible for sending or mailing the item for repair and thereafter, picking up the repaired item themselves.
Ask a Question

Guarantee Safe Checkout

ASUS PRIME B650M-A WIFI II | 4 DIMM SLOTS | DDR5 | PCI-E 5.0 | REALTEK 2.5GB | WIFI | AM5 | 12 MONTHS WARRANTY MOTHERBOARD
ASUS PRIME B650M-A WIFI II | 4 DIMM SLOTS | DDR5 | PCI-E 5.0 | REALTEK 2.5GB | WIFI | AM5 | 12 MONTHS WARRANTY MOTHERBOARD
₱9,697
₱10,497

AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Arua Sync

  • AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
  • Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
    Model



    PRIME B650M-A WIFI II SPECS:


    CPU
    AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
    * Refer to www.asus.com for CPU support list.
    Chipset
    AMD B650 Chipset
    Memory
    4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports AMD Extended Profiles for Overclocking (EXPO™)
    OptiMem II
    * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
    * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
    Graphics
    1 x DisplayPort**
    1 x VGA port
    1 x HDMI® port***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI® 2.1.
    Expansion Slots
    AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
    1 x PCIe 4.0 x16 slot (supports x16 mode)
    AMD Ryzen™ 8000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
    AMD B650 Chipset
    2 x PCIe 4.0 x16 slots (support x1 mode)
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
    ** Specifications vary by CPU types.
    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    Storage
    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    AMD Ryzen™ 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    AMD B650 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
    Ethernet
    1 x Realtek 2.5Gb Ethernet
    Wireless & Bluetooth
    Wi-Fi 6
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth® v5.2
    * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
    USB
    Rear USB (Total 8 ports)
    2 x USB 3.2 Gen 2 ports (2 x Type-A)
    2 x USB 3.2 Gen 1 ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

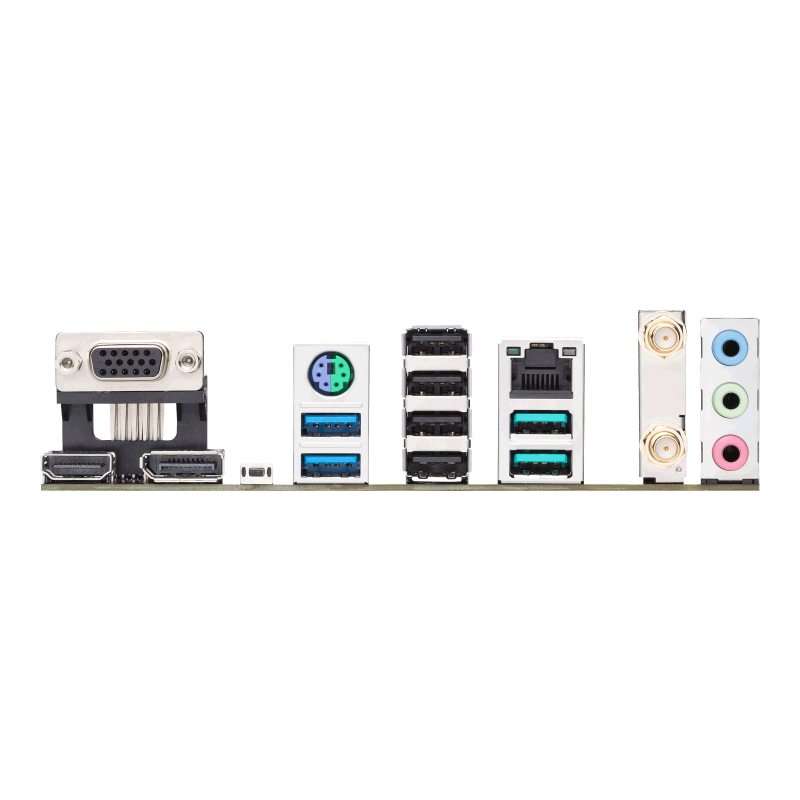

    Back Panel I/O Ports
    2 x USB 3.2 Gen 2 ports (2 x Type-A)
    2 x USB 3.2 Gen 1 ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x VGA port
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x BIOS FlashBack™ button
    1 x PS/2 Keyboard/Mouse combo port
    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x Speaker header
    1 x SPI TPM header (14-1pin)
    1 x 10-1 pin System Panel header
    Special Features
    ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage Protection
    - Safeslot Core+
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack™ LED
    Aura Sync
    - Aura RGB header
    - Addressable Gen 2 headers
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 2+
    - Power Saving
    AI Suite 3
    - TurboV EVO
    - DIGI+ VRM
    - PC Cleaner
    ASUS CPU-Z
    MyASUS
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
    Manageability
    WOL by PME, PXE

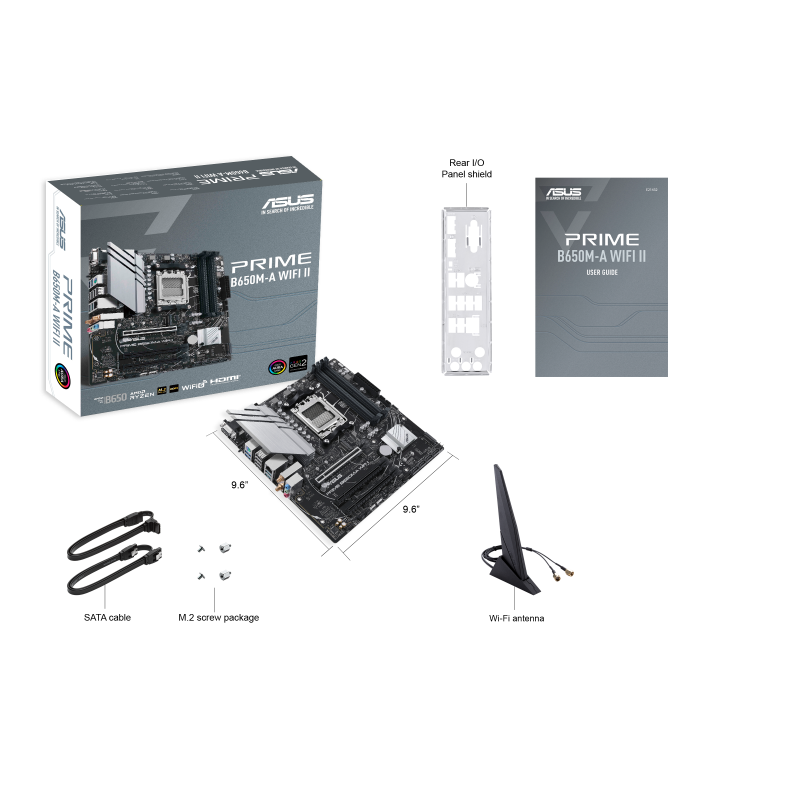

    Accessories
    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x I/O Shield
    1 x Screw Package for M.2 SSD
    Documentation
    1 x User guide
    Operating System
    Windows® 11, Windows® 10 64-bit
    Form Factor
    mATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
