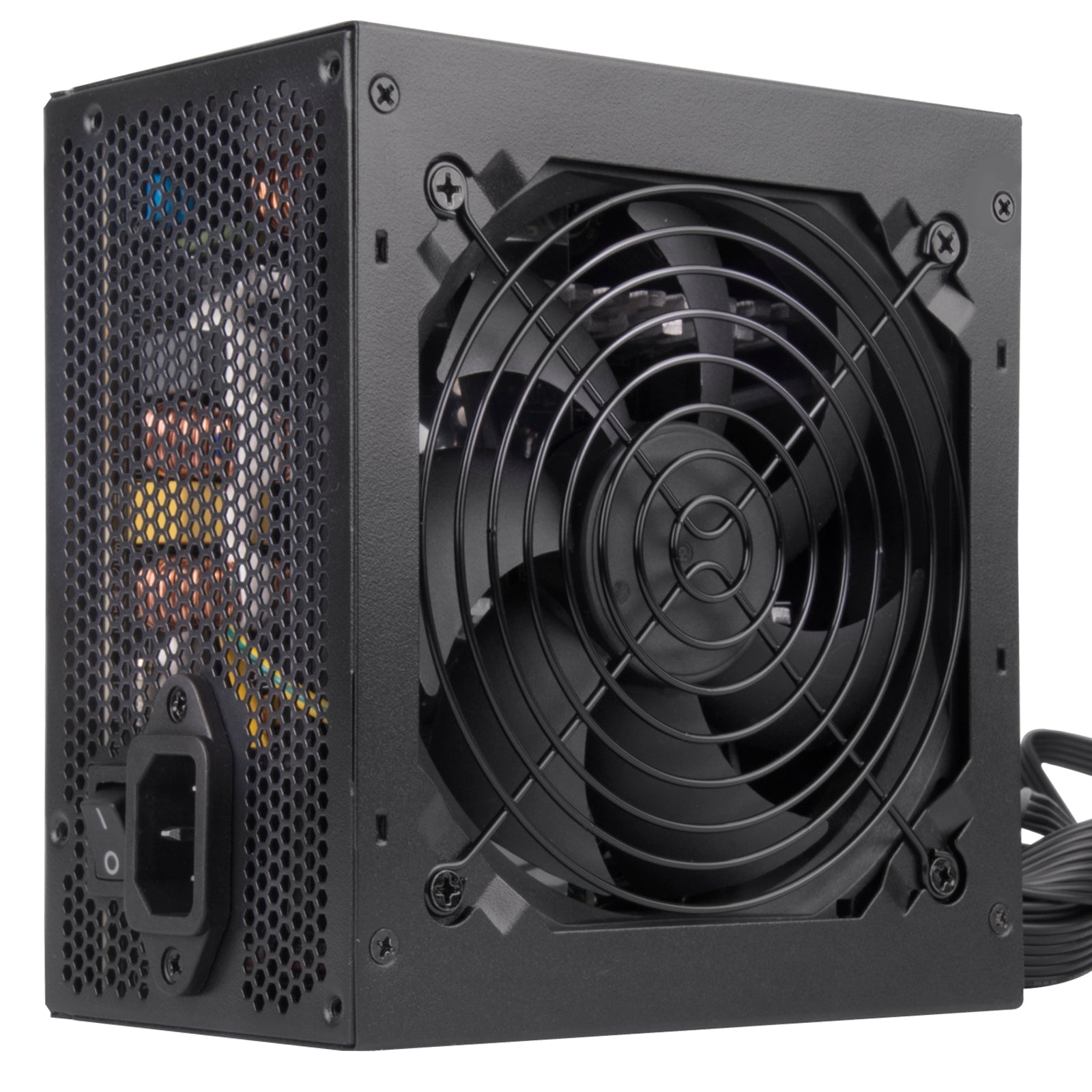

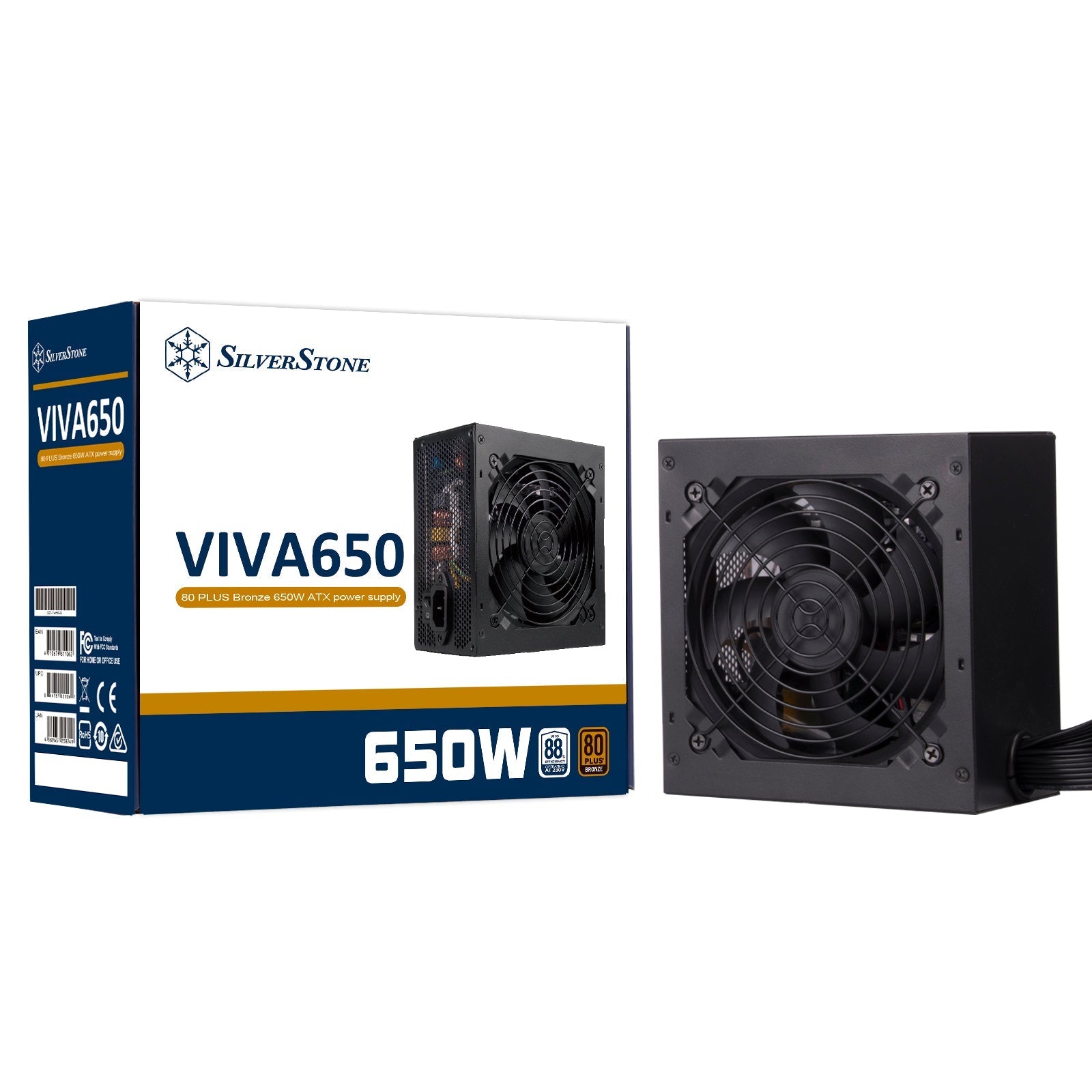

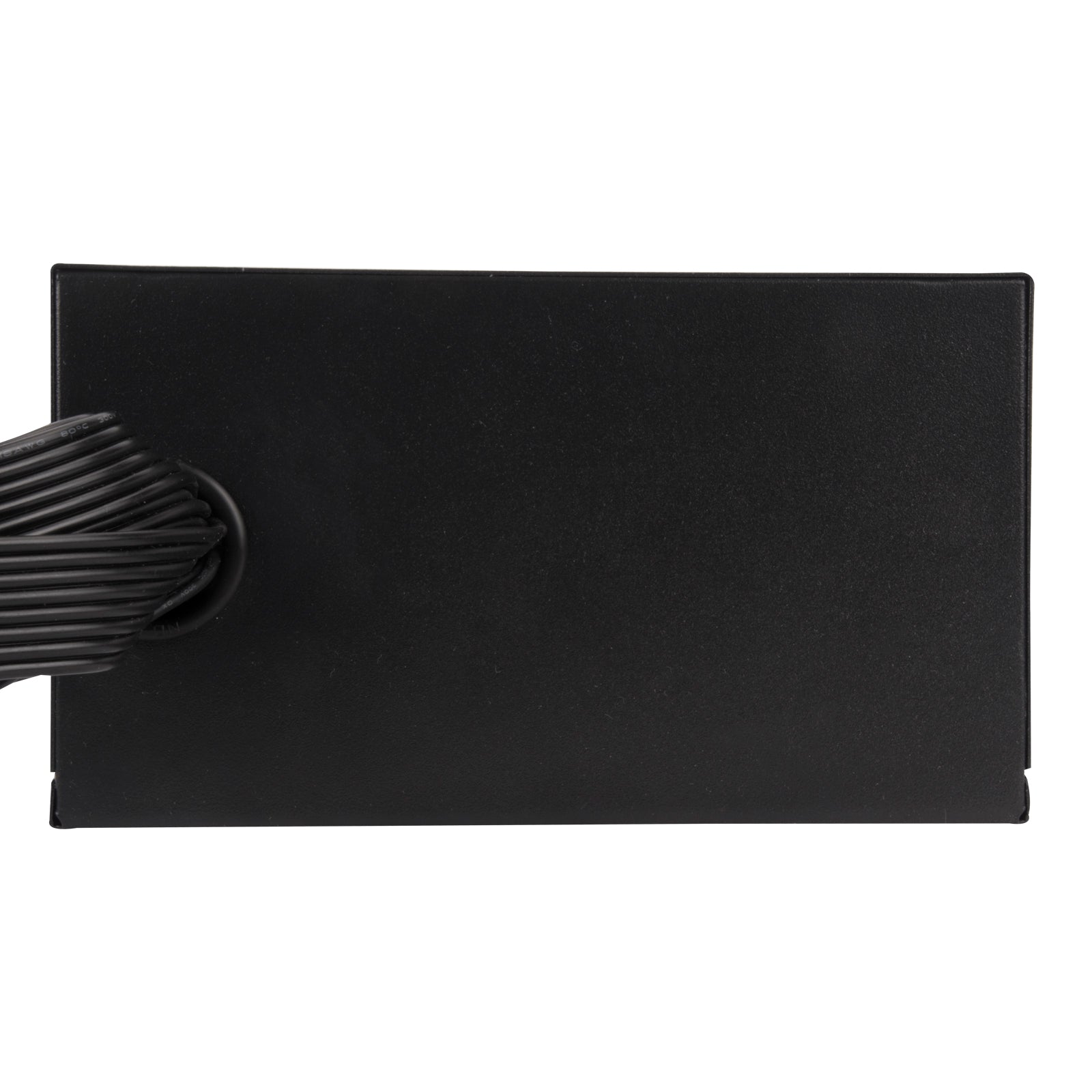

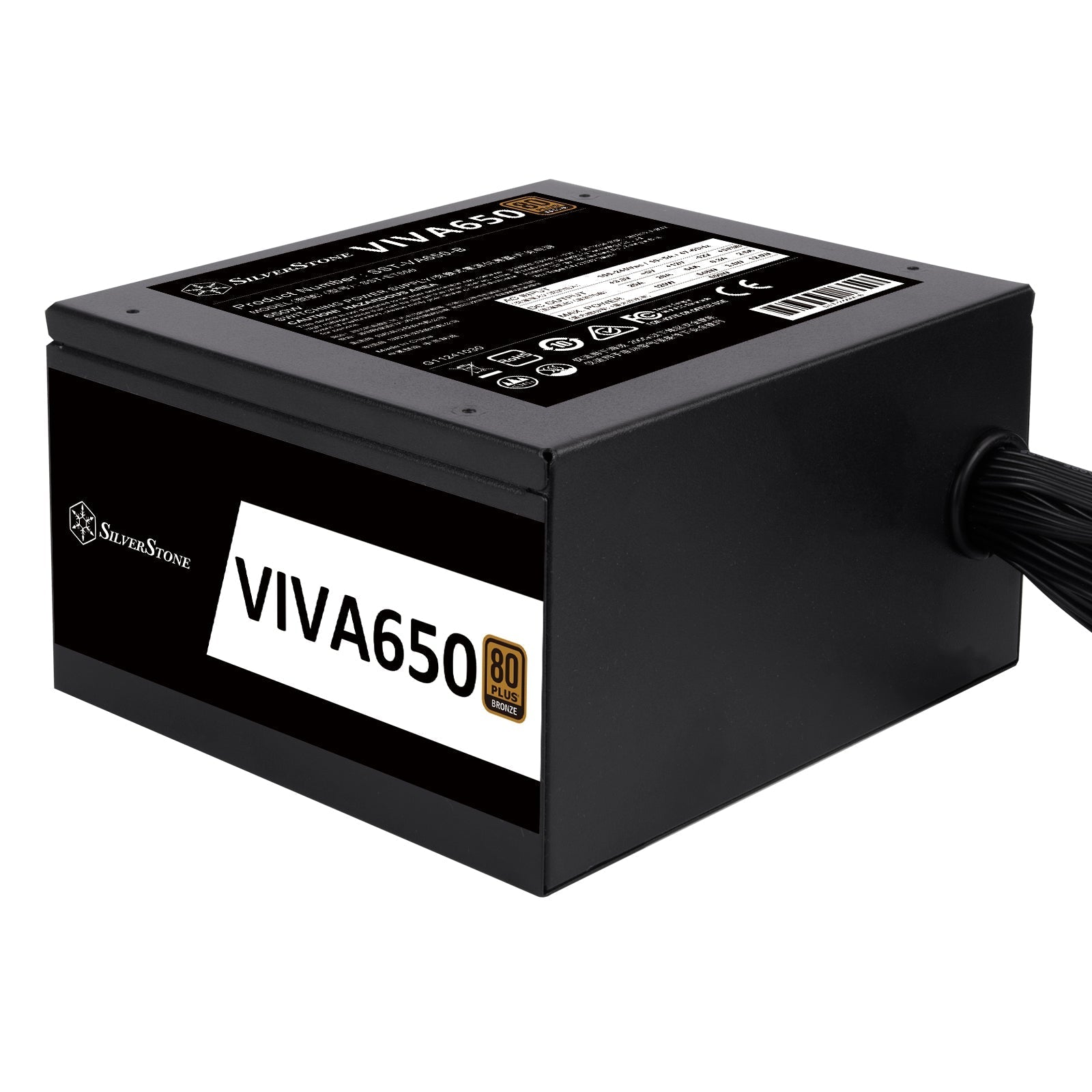

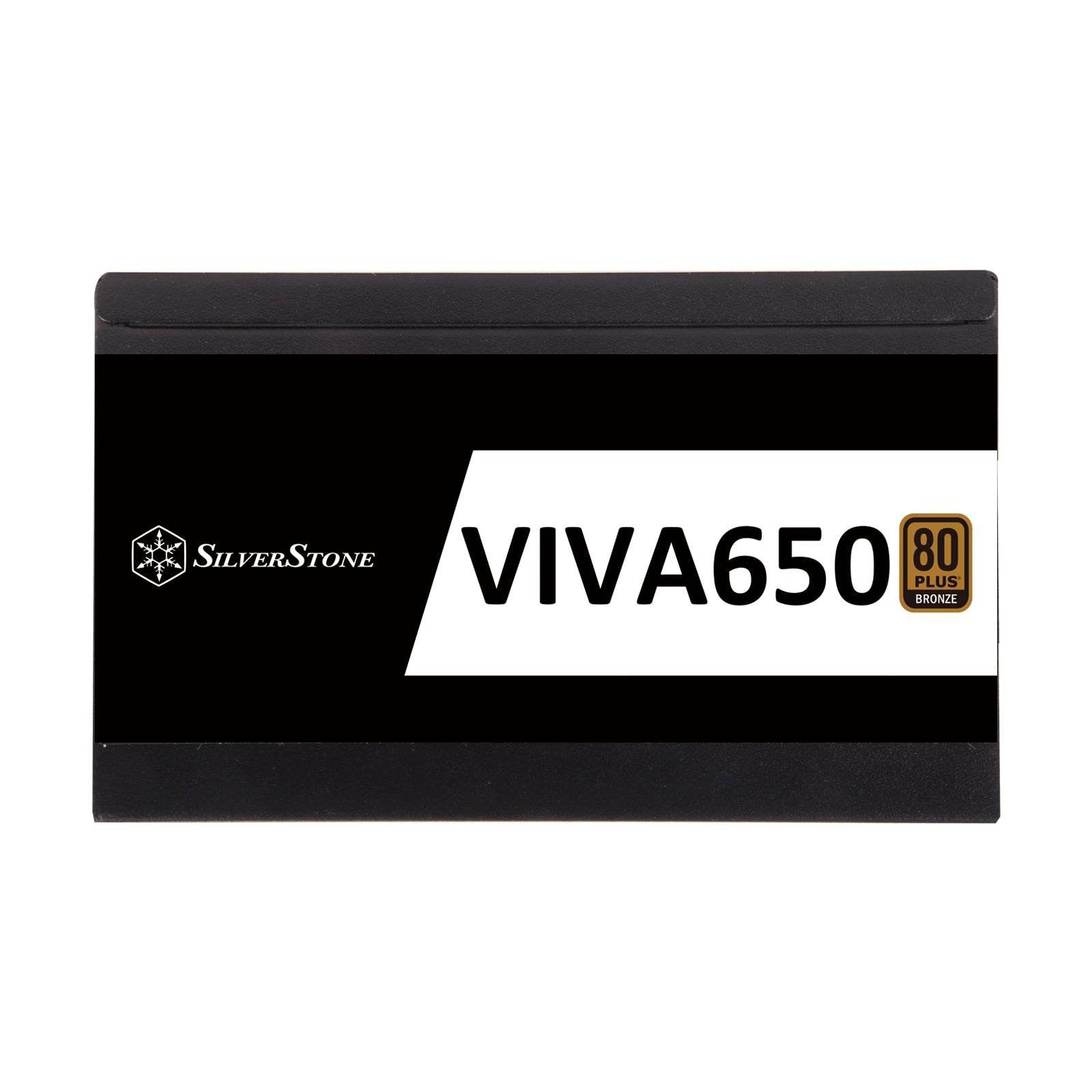

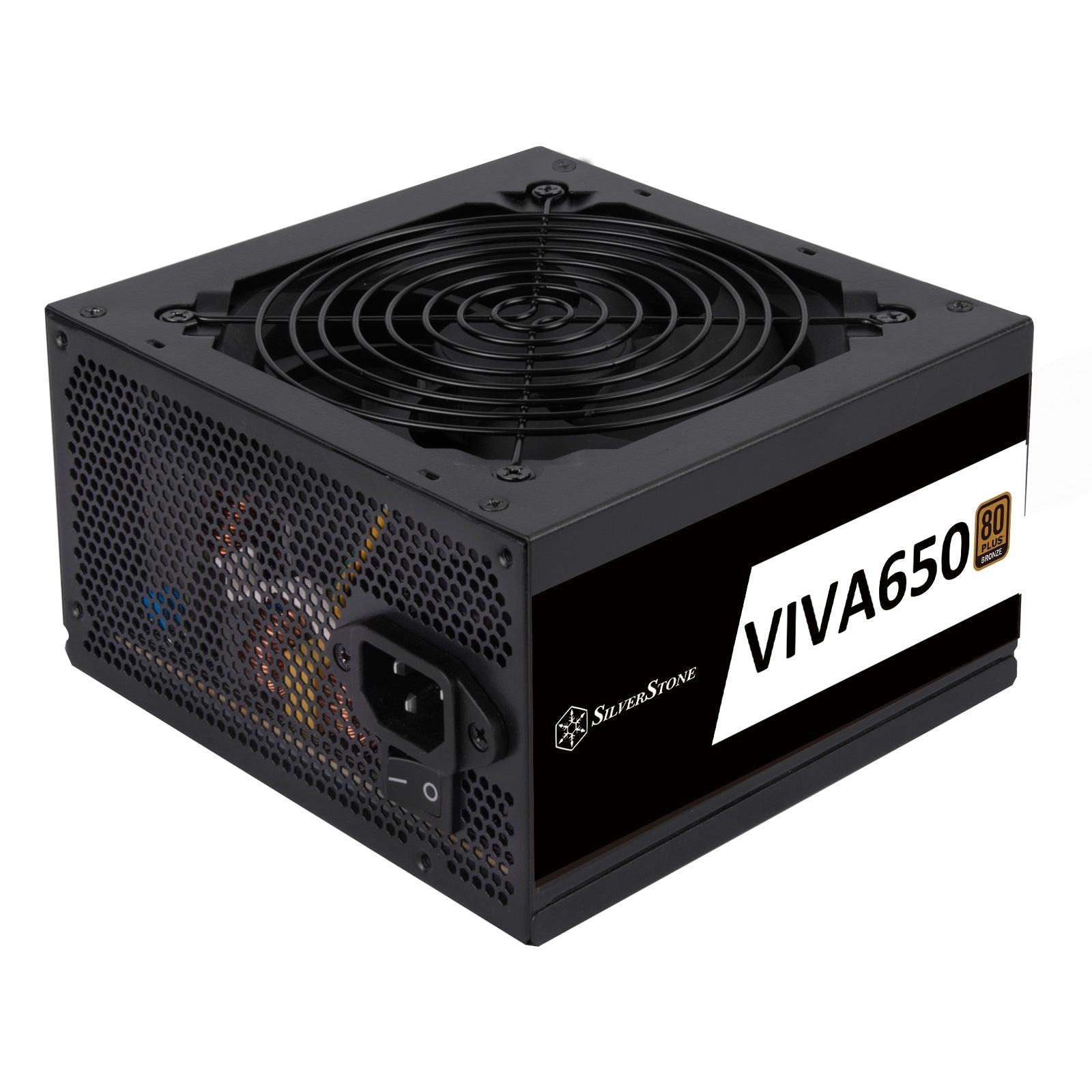

SILVERSTONE VIVA | 650W | 80PLUS BRONZE | FULL WIRE | 12 MONTHS WARRANTY | POWER SUPPLY

₱3,597
₱3,471.00 Discounted Price OR Freebie
₱3,597.00 3 Months 0% or Straight Credit Card ( ₱1,199.00 / Mo.)
₱4,118.00 12 Months Credit Card ( ₱343.00 / Mo.)

Rate may slightly vary depending on the card that you are using.

CARRY-IN WARRANTY
Makotek customers are responsible for sending or mailing the item for repair and thereafter, picking up the repaired item themselves.
Ask a Question

Guarantee Safe Checkout

SILVERSTONE VIVA | 650W | 80PLUS BRONZE | FULL WIRE | 12 MONTHS WARRANTY | POWER SUPPLY
SILVERSTONE VIVA | 650W | 80PLUS BRONZE | FULL WIRE | 12 MONTHS WARRANTY | POWER SUPPLY
₱3,597

The logos and images resembling registered trademarks are the property of their respective brands. Makotek Computer Sales, Inc. does not claim ownership of these marks in any manner.

Product Specifications

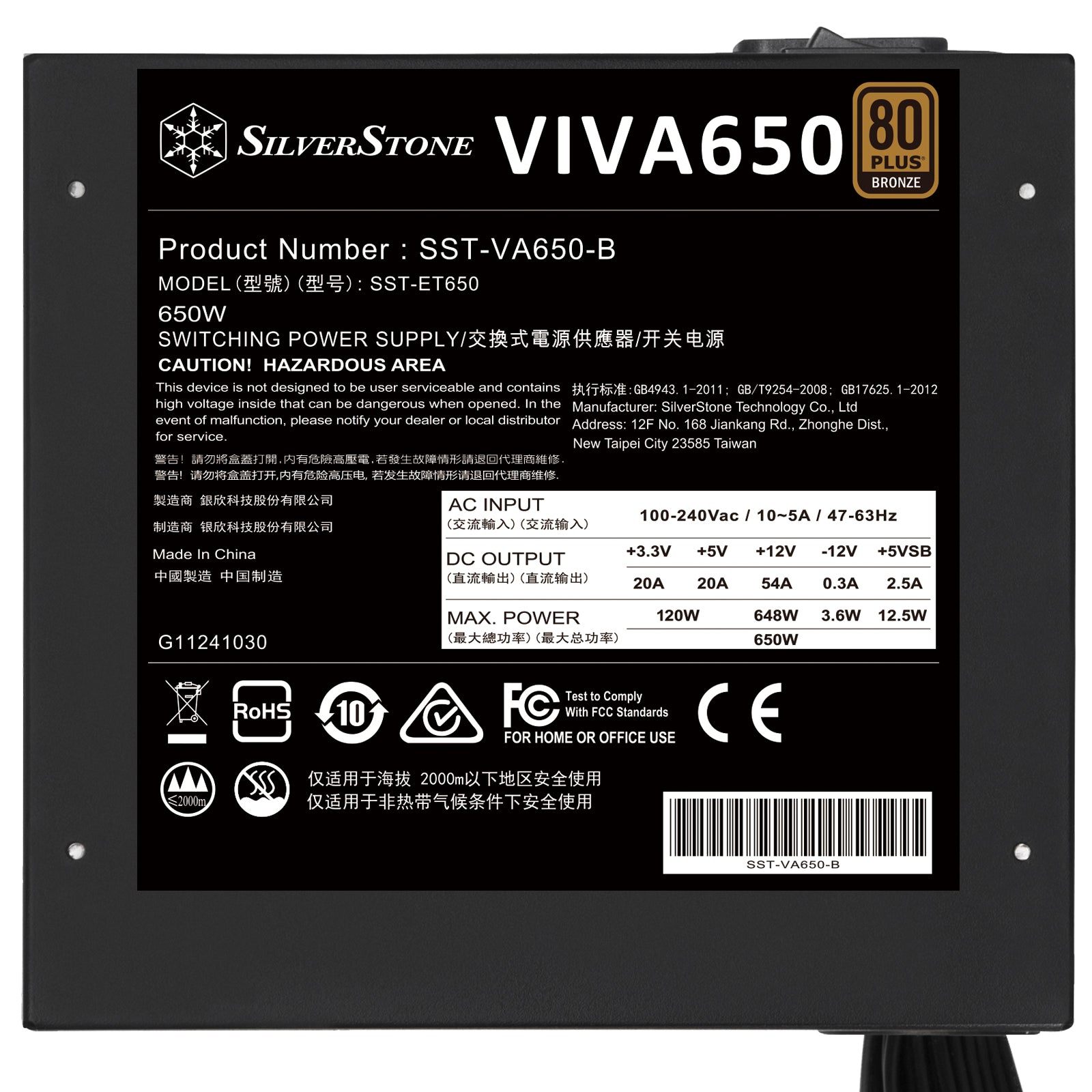

Model (safety certification)
SST-ET650

Color

Black（Lead-Free Paint）

Max. DC Output

650W

Power density

360W per liter

Load Range

Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 54A 3.0A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 2.05A 2.05A 9.2A 0.41A 0.05A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3V & +5V
120W
Combined +12V
648W

Input Voltage

100 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.9 at full load）

Efficiency

82% ~ 85% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection
Over voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector (500mm)
2 x 4-Pin + 4-Pin ATX 12V connector (650mm / 150mm)
4 x 8 / 6-Pin PCIe connector ("500mm / 100mm" x 2)
6 x SATA connector ("500mm / 150mm / 150mm" x 2)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)

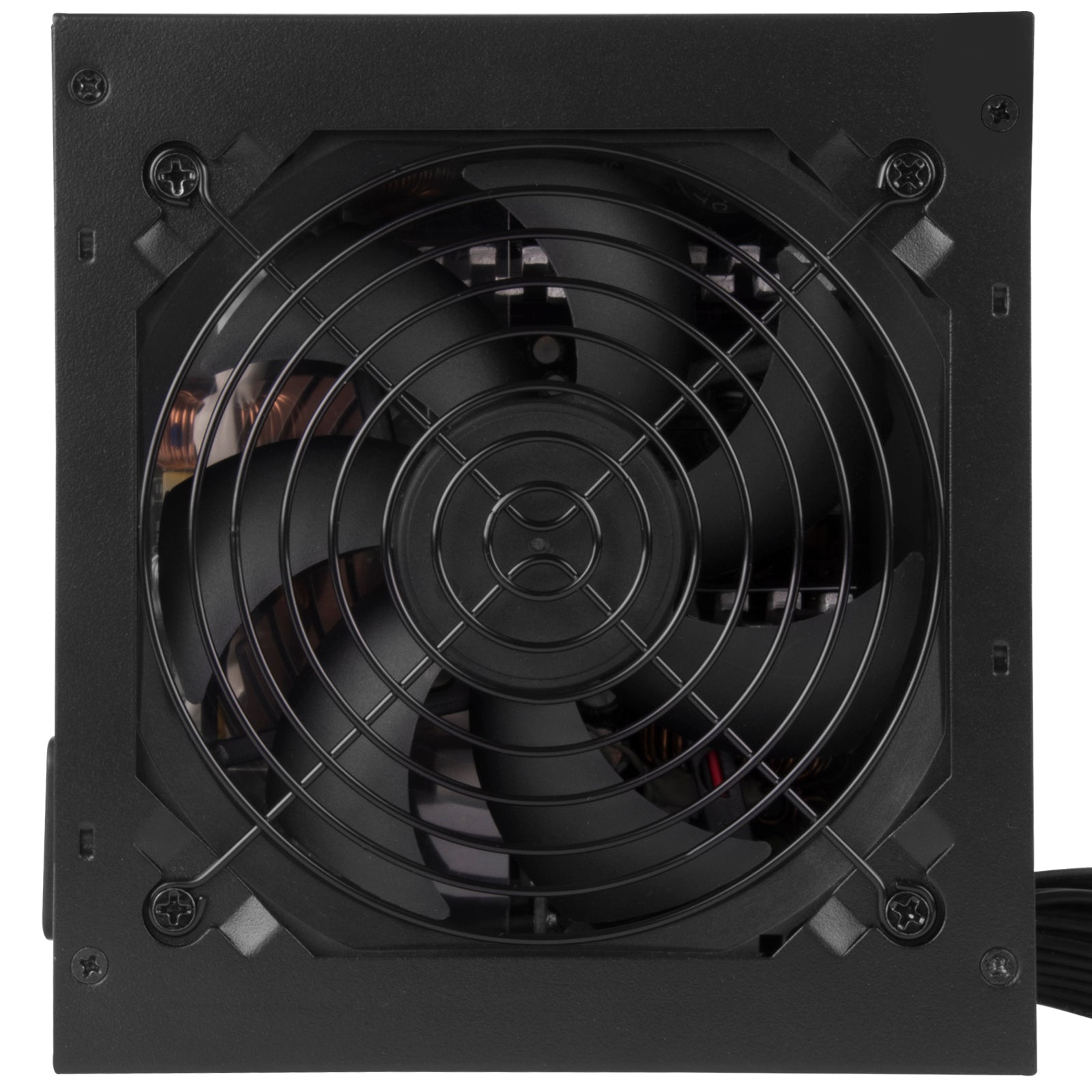

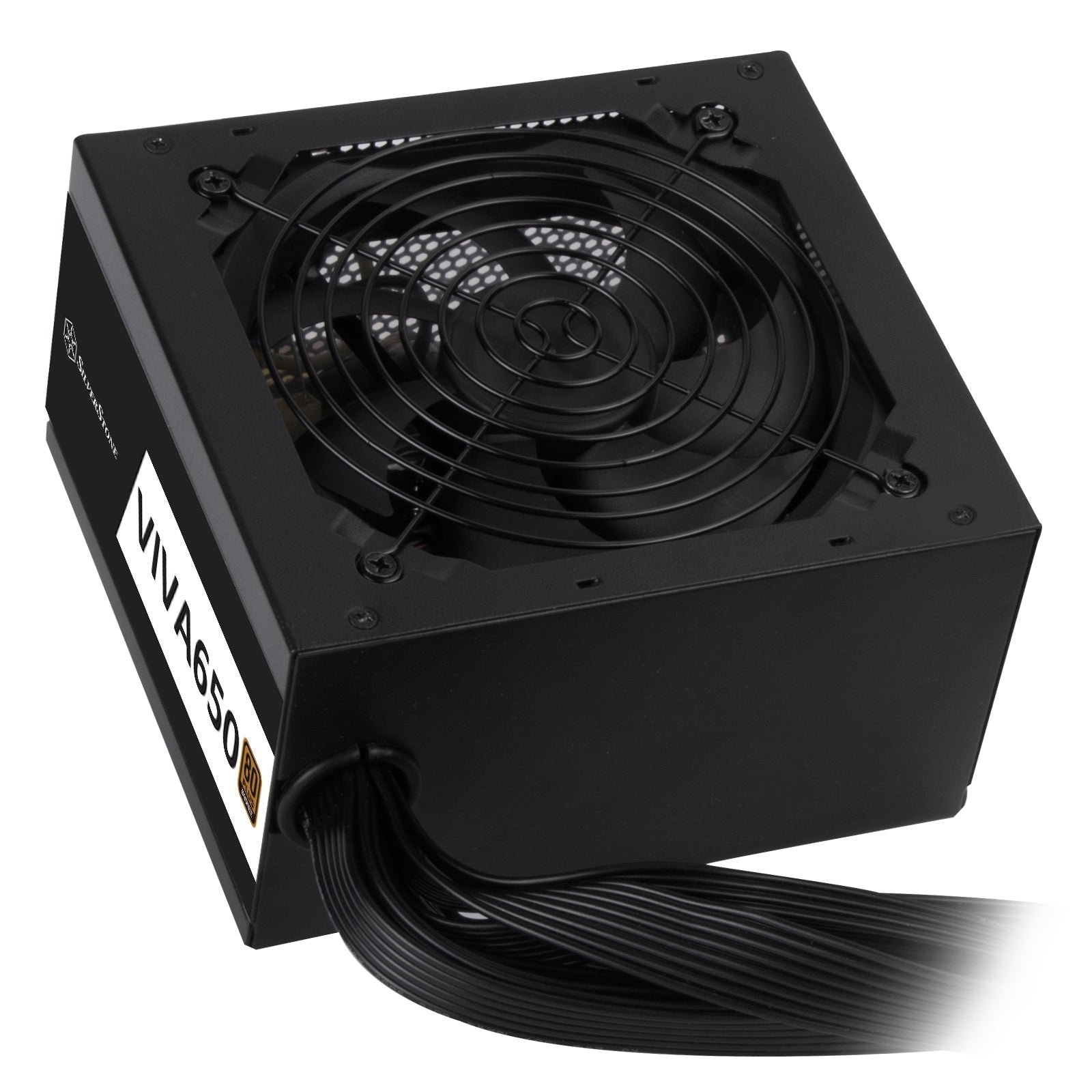

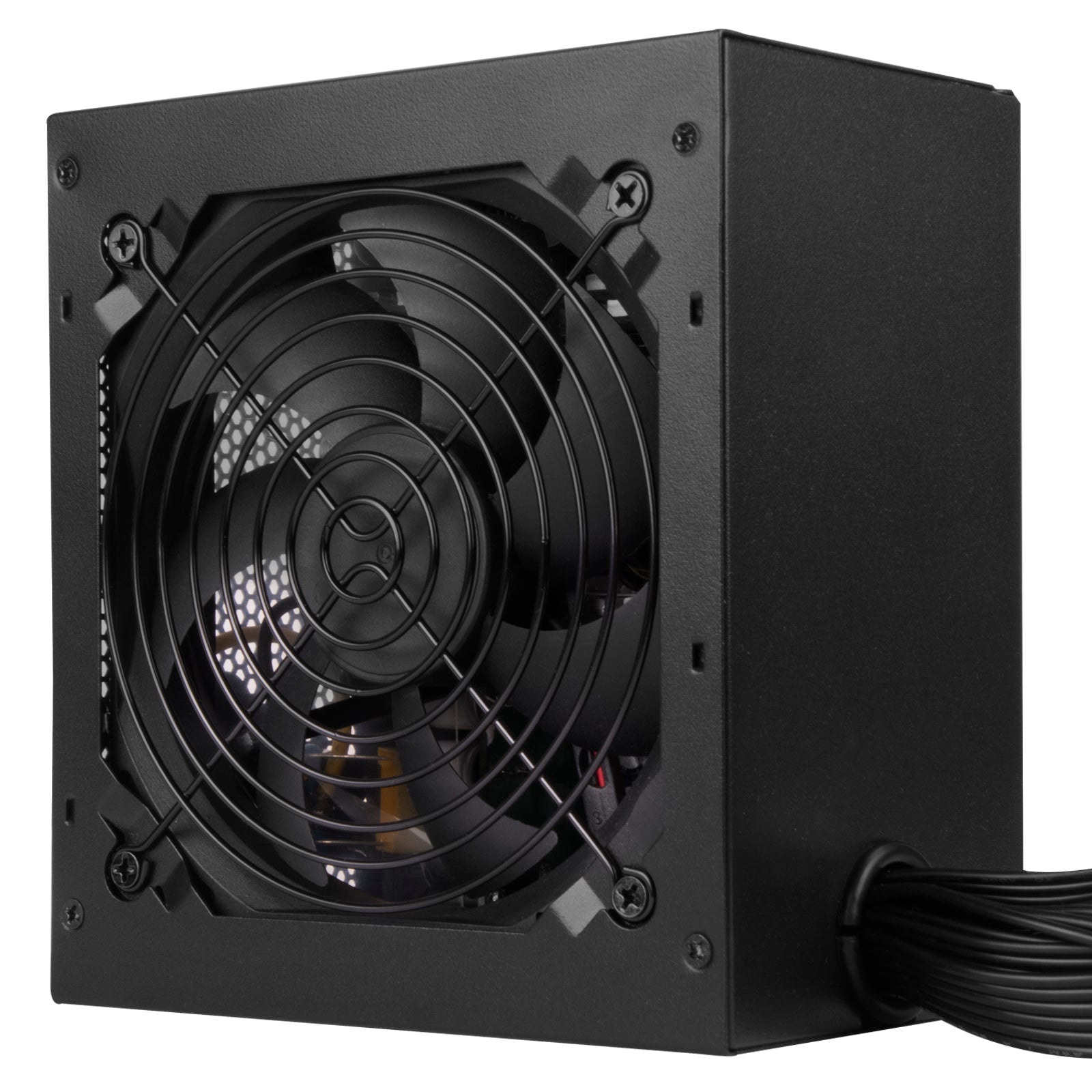

Cooling System

Single 120mm silent fan

Noise Level

18dBA minimum

Certification

80 PLUS Bronze

Form factor

ATX (PS2)

Dimension

150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
1.52 Kg
Other

GPU Support list
Compatible with ATX12V v2.4
