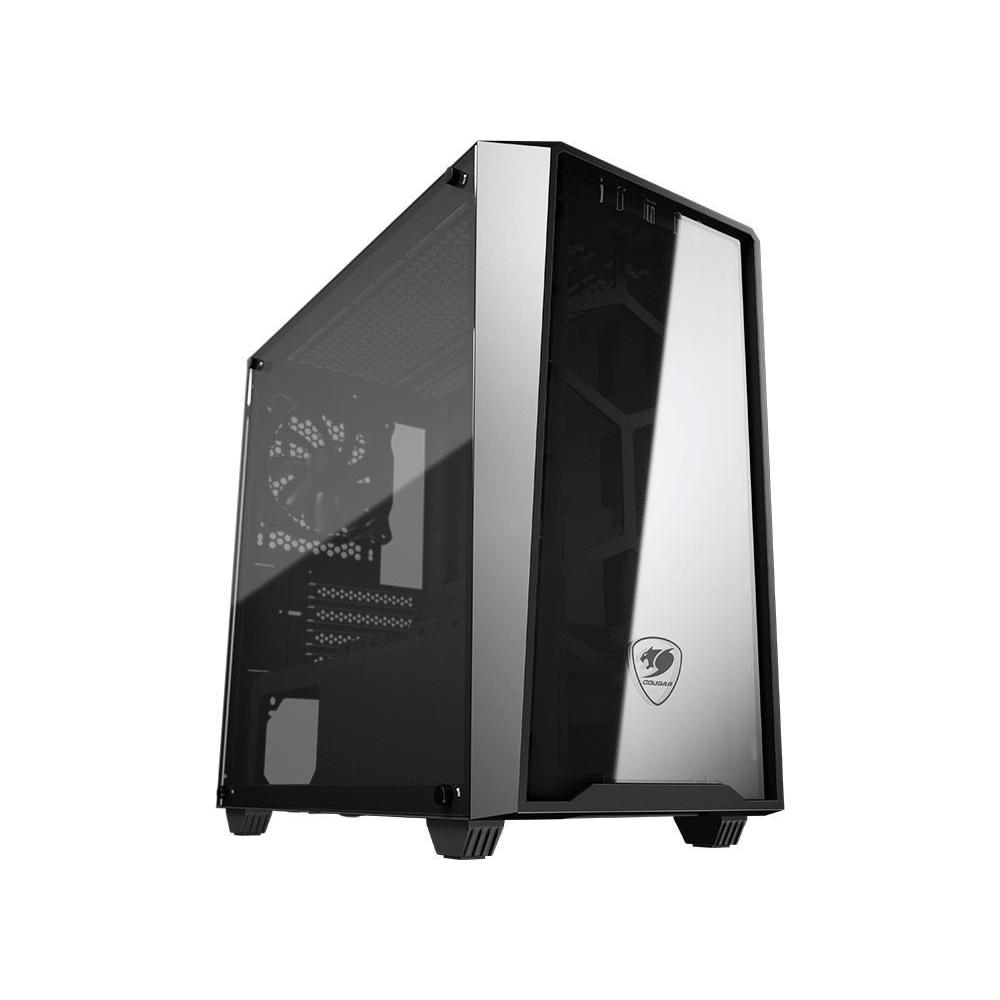

| Name | MG120-G | |
|---|---|---|
| Case Form Factor | Mini Tower | |
| Motherboard Type | Mini ITX / Micro ATX | |
| Dimensions (WxHxD) | 210 x 415 x 400 (mm) 8.27 x 16.34 x 15.75 (in) |
|
| I/O Panel | USB3.0 x 1, USB2.0 x 1, Mic x 1 / Audio x 1, Reset Button | |
| 3.5" Drive Bay | 2 | |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) / (2 SSD trays included) | |
| Expansion Slots | 4 | |
| Cooling Fan Support | Front | 140mm x 2 / 120mm x 3 |
| Top | 140mm x 2 / 120mm x 2 | |
| Rear | 120mm x 1 (pre-installed) | |
| Maximum Number of Fans | 6 Max. | |
| Water Cooling Support | Front | 280mm / 240mm /140mm /120mm |
| Top | 240mm / 140mm / 120mm ( Max. Component Height on Motherboard is 40mm ) |
|
| Rear | 120mm | |
| Max. Graphics Card Length | 330 (mm) / 12.99 (in) | |
| Max. CPU Cooler Height | 175 (mm) / 6.89 (in) | |
| PSU | Standard ATX PS2 | |
| Max. PSU length | 160 (mm) / 6.3 (in) | |
| Cable Management | Yes | |
