Application For
Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD: AM5/AM4
Technical Spec
| Product Dimensions | 127×117×160 mm(L×W×H) |

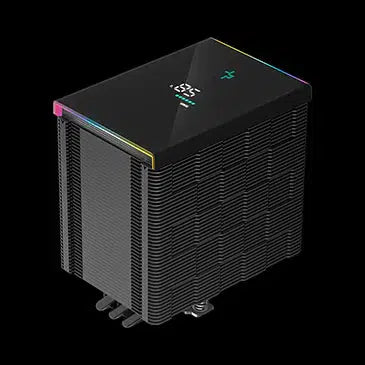

| Heatsink Dimensions | 127×92×156 mm(L×W×H) |
| Net Weight | 1291 g |

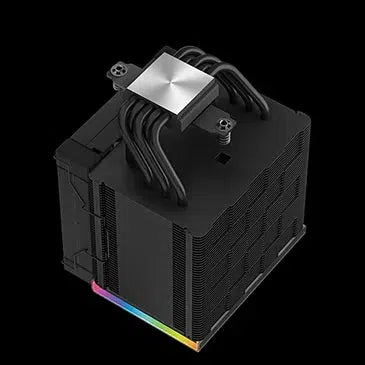

| Heatpipe | Ø6 mm×5 pcs |

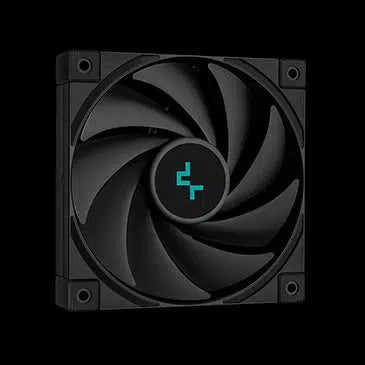

| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 500~1850 RPM±10% |
| Fan Airflow | 68.99 CFM |
| Fan Air Pressure | 2.19 mmAq |
| Fan Noise | ≤28 dB(A) |
| Fan Speed (with LSP) | 500~1550 RPM±10% |
| Fan Airflow (with LSP) | 52.24 CFM |
| Fan Air Pressure (with LSP) | 1.2 mmAq |
| Fan Noise (with LSP) | ≤25.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.12 A |
| Fan Power Consumption | 1.44 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) and 9-pin USB 2.0 |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 4.5 W |
