Technical Spec
| Product Dimensions | 127×117×158 mm |
| Heatsink Dimensions | 127×90×158 mm |
| Net Weight | 1040 g |

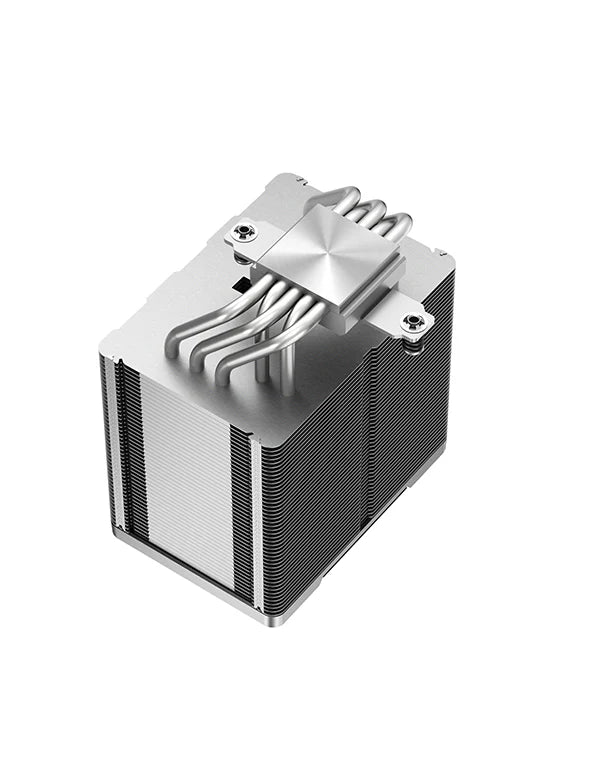

| Heatpipe | Ø6 mm×5 pcs |

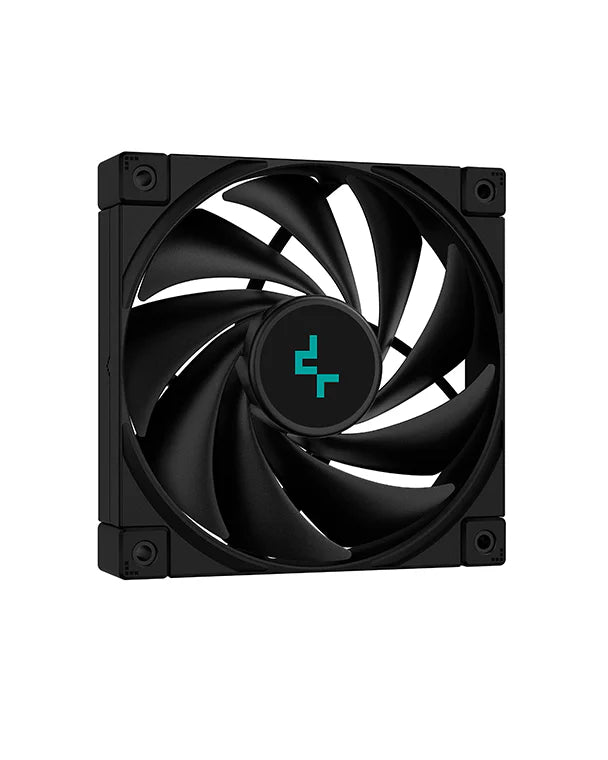

| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~1850 RPM±10% |
| Fan Airflow | 68.99 CFM |
| Fan Air Pressure | 2.19 mmAq |
| Fan Noise | ≤31.5 dB(A) |
| Fan Speed (with LSP) | 500~1550 RPM±10% |
| Fan Airflow (with LSP) | 52.24 CFM |
| Fan Air Pressure (with LSP) | 1.2 mmAq |
| Fan Noise (with LSP) | ≤25.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.12 A |
| Fan Power Consumption | 1.44 W |
| EAN | 6933412727972 |
| P/N | R-AK500-BKNNMT-G-1 |
