Application For
Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD: sTRX4/sTR4/AM5/AM4
Technical Spec
| Net Weight | 1504 g |

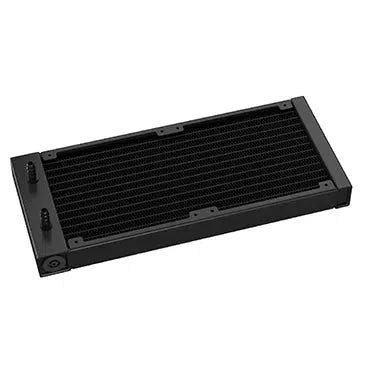

| Radiator Dimensions | 282×120×27 mm(L×W×H) |
| Radiator Material | Aluminum |
| Tube length | 410 mm(L×W×H) |

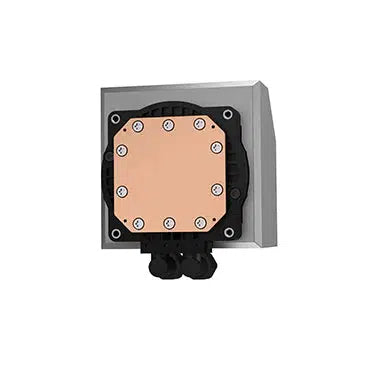

| Pump Dimensions | 94×80×68 mm(L×W×H) |
| Pump Speed | 3100 RPM±10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.38 A |
| Pump Power Consumption | 4.56 W |

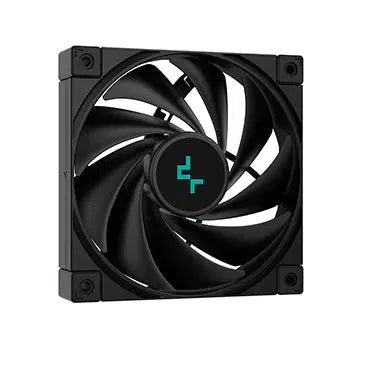

| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 500~2250 RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.22 A |
| Fan Power Consumption | 2.64 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 3.15 W（PUMP） |
