| Form Factor (Midi, Micro, Mini ITX, Full) | M-ATX/ITX | ||
| Chassis |
SPCC + Tempered Glass |
||
| PSU Form Factor | ATX/MATX | ||
| M/B Form Factor | M-ATX/ITX | ||
| Front Panel | Metal cover | ||
| Top Panel | Metal cover | ||
| Side Panel | Left | Metal cover | |
| Right | Metal cover | ||
| External Drive Bay(s) | 5.25" (ODD) | *0 | |
| 3.5" | *0 | ||
| Internal Drive Bay(s) | 3.5" (HDD) | *3 | |
| 2.5" (SSD) | *3 | ||

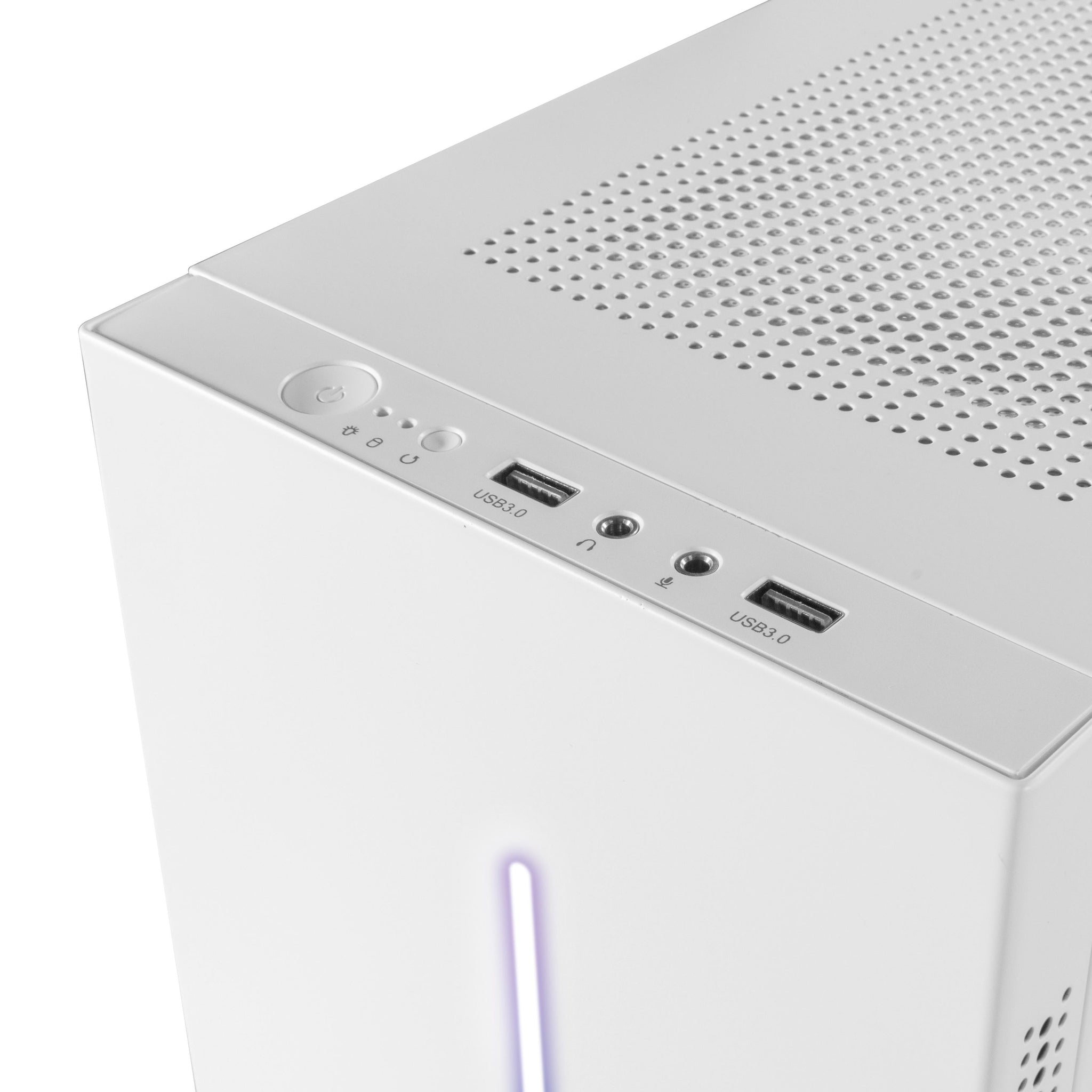

| I/O | Buttons | *2 | |
| USB1.1 Port(s) | *0 | ||
| USB2.0 Port(s) | *0 | ||
| USB3.0 Port(s) | *2 | ||
| USB3.1 Port(s) | *0 | ||
| HD Audio Support | *1 | ||
| Card Reader (Support) | *0 | ||
| P-Lock | *0 | ||
| RGB Controller | *0 | ||
| Controller max. fans | *0 | ||
| RGB Controller max. LED strips | *0 | ||
| Remote (IR or RF) | *0 | ||
| Cooling Fan Support | Front | 0 | |
| Top | 2x120mm (Fan optional) | ||
| Rear | 2x80mm (Fan optional) | ||
| Side | 2x120mm/2x140mm (Fan optional) (Fan Bracket required) | ||
| Bottom | 2x120mm (Fan optional) | ||
| Water Cooling Support (Radiator Size) |
Front | 0 | |
| Top | 240mm*1 (if MATX motherboard installed) | ||
| Rear | 0 | ||
| Side | 120/240mm (max. 280mm, thickness depends on PSU/Memory) | ||
| Bottom | 120mm*1 | ||
| Dimensions | Chassis | mm | (L)391*(W)185*(H)303mm |
| Full Case (inc Fascia) | mm | ||
| Carton | mm | ||
| Net Weight (Kg) | kg | ||
| Gross Weight (Kg) | kg | ||
| VGA Card Length | mm | up to 335mm (245mm if ATX PSU installed vertically) | |
| CPU Cooler Height | mm | 155mm (88mm if with vertical VGA card installed) | |
| Cable Management Depth | mm |
