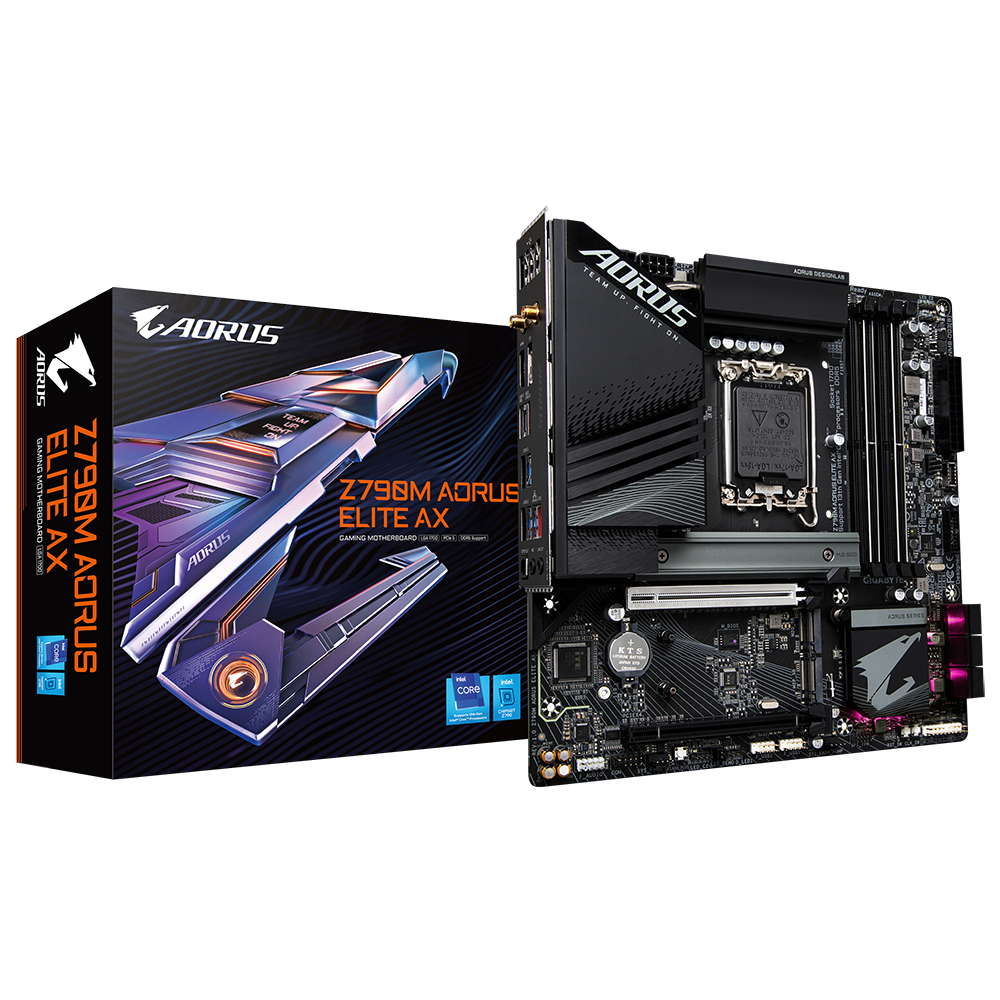

GIGABYTE Z790M AORUS ELITE AX DDR5 INTEL | 12 MONTHS WARRANTY | MOTHERBOARD

Regular price β‚±16,797
Sale price
β‚±16,209.00 Discounted Price OR Freebie
β‚±16,797.00 3 Months 0% or Straight Credit Card ( β‚±5,599.00 / Mo.)
β‚±19,232.00 12 Months Credit Card ( β‚±1,602.00 / Mo.)
CARRY-IN WARRANTY
Makotek customers are responsible for sending or mailing the item for repair and thereafter, picking up the repaired item themselves.

For Pre-Order fill-up this form

Guarantee Safe Checkout

GIGABYTE Z790M AORUS ELITE AX DDR5 INTEL | 12 MONTHS WARRANTY | MOTHERBOARD
GIGABYTE Z790M AORUS ELITE AX DDR5 INTEL | 12 MONTHS WARRANTY | MOTHERBOARD
Regular price β‚±16,797
Sale price
  • IntelSocket LGA 1700 Support 13th and 12th Gen Series Processors
  • Unparalleled Performance Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5 4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage 3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity HDMI, DP, Rear USB-C20Gb/s, Front USB-C10Gb/s
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS Without Installing the CPU, Memory and Graphics Card

* 6+6 phases parallel power design

  • CPU
    1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation IntelCore, PentiumGold and CeleronProcessors
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. IntelZ790 Express Chipset
  • Memory
    1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-IntelHD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
      * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. RealtekALC1200 CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    IntelWi-Fi 6E AX211
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    Support for AMD CrossFire technology
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    3. 6 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
    Chipset:
    1. 1 x USB Type-Cport on the back panel, with USB 3.2 Gen 2x2 support
    2. 1 x USB Type-Cport with USB 3.2 Gen 2 support, available through the internal USB header
    3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    Chipset+2 USB 2.0 Hubs:
    1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 3 x system fan headers
    7. 1 x system fan/water cooling pump header
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 3 x M.2 Socket 3 connectors
    11. 6 x SATA 6Gb/s connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-Cheader, with USB 3.2 Gen 2 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 2 x Thunderbolt add-in card connectors
    18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    19. 1 x serial port header
    20. 1 x reset button
    21. 1 x Q-Flash Plus button
    22. 1 x Clear CMOS button
    23. 1 x reset jumper
  • Back Panel Connectors
    1. 1 x USB Type-Cport, with USB 3.2 Gen 2x2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red)
    3. 4 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 2 x SMA antenna connectors (2T2R)
    6. 1 x HDMI 2.0 port
    7. 1 x DisplayPort
    8. 1 x RJ-45 port
    9. 1 x optical S/PDIF Out connector
    10. 2 x audio jacks
