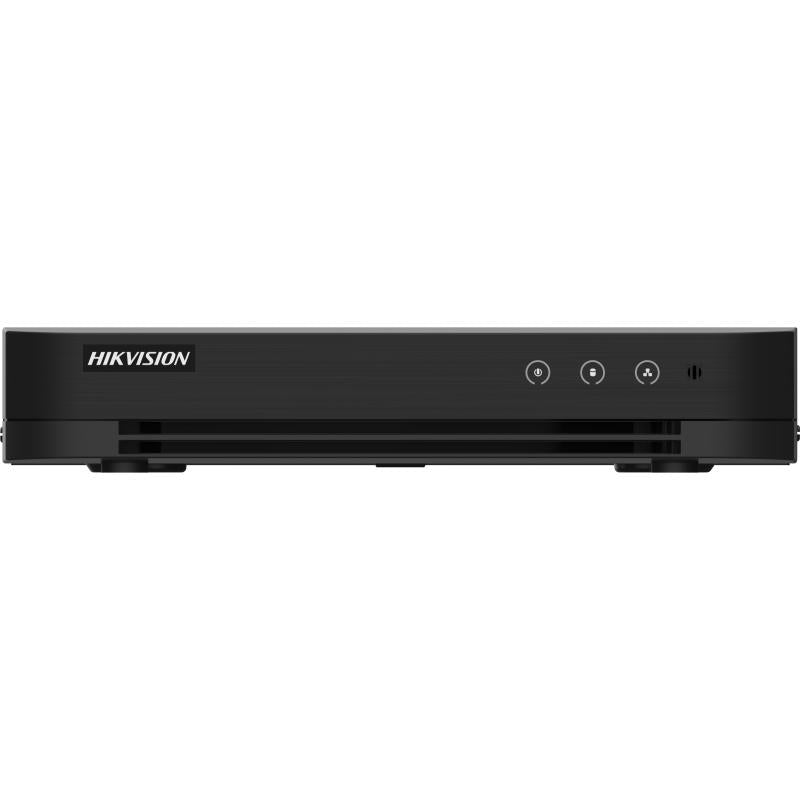

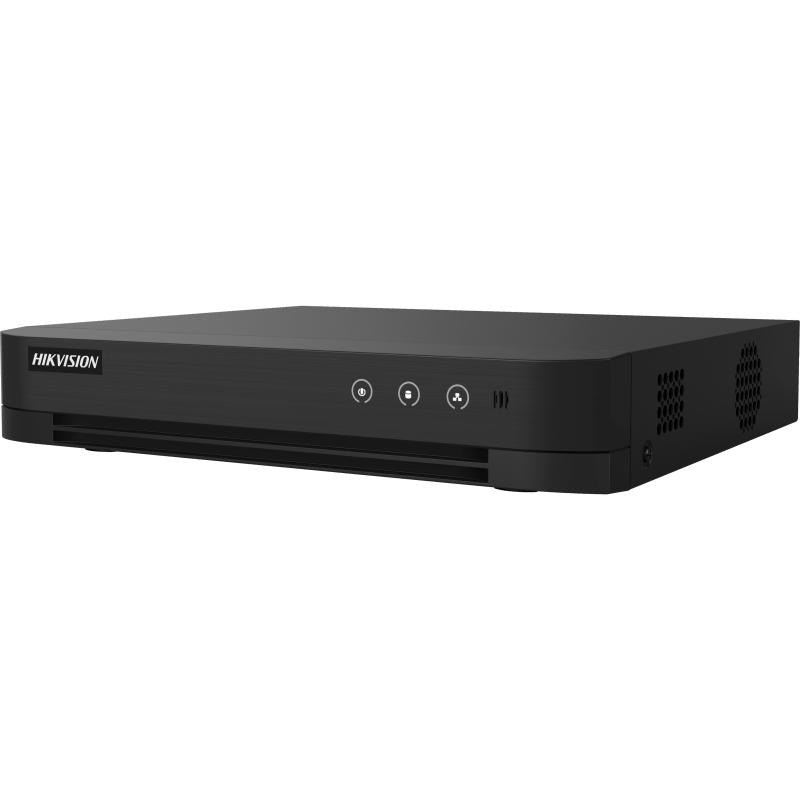

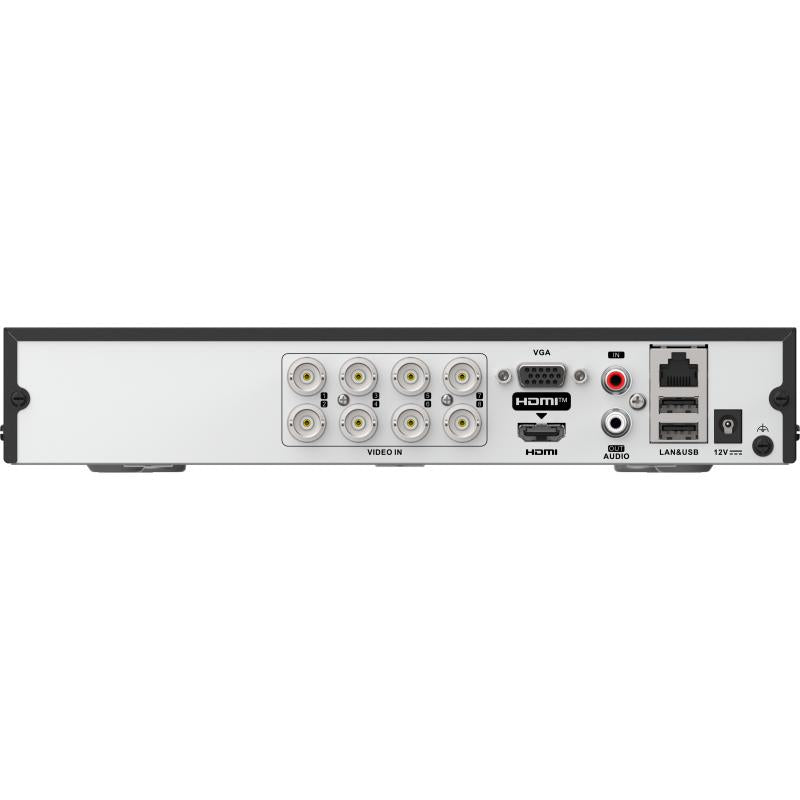

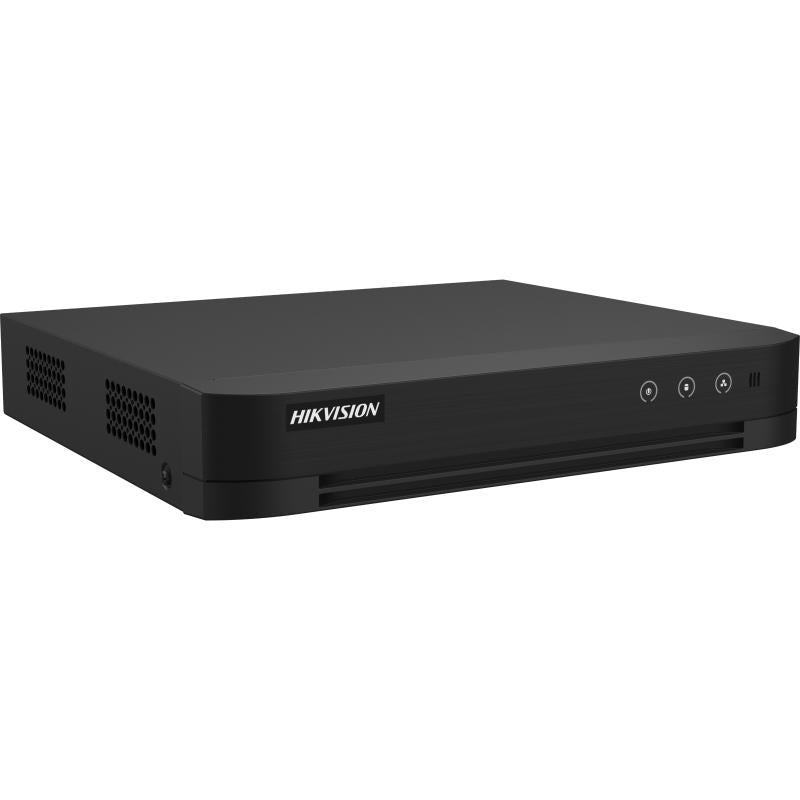

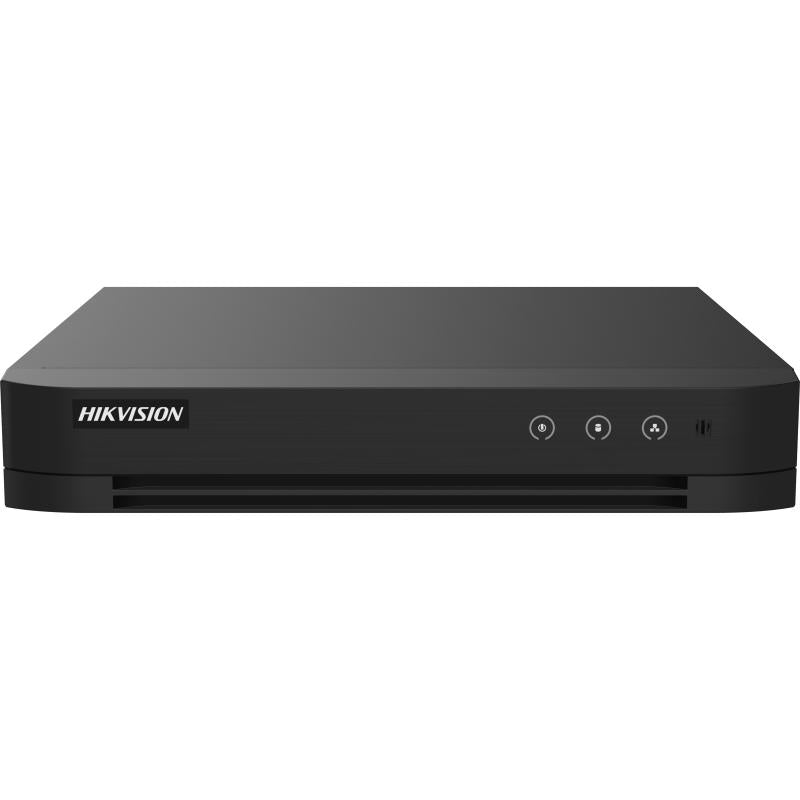

HIKVISION DS-7208HGHI-M1 8CH 720p 1U H.265, HDTVI/AHD/CVI/CVBS/IP VIDEO INPUT, UP TO 10-CH IP CAMERA INPUT (up to 5 MP)| 6 MONTHS WARRANTY DVR

Save ₱200.00
₱3,397
₱3,597
₱3,278.00 Discounted Price OR Freebie
₱3,397.00 3 Months 0% or Straight Credit Card ( ₱1,132.00 / Mo.)
₱3,889.00 12 Months Credit Card ( ₱324.00 / Mo.)
CARRY-IN WARRANTY
Makotek customers are responsible for sending or mailing the item for repair and thereafter, picking up the repaired item themselves.
Ask a Question

For Pre-Order fill-up this form

HIKVISION DS-7208HGHI-M1 8CH 720p 1U H.265, HDTVI/AHD/CVI/CVBS/IP VIDEO INPUT, UP TO 10-CH IP CAMERA INPUT (up to 5 MP)| 6 MONTHS WARRANTY DVR
HIKVISION DS-7208HGHI-M1 8CH 720p 1U H.265, HDTVI/AHD/CVI/CVBS/IP VIDEO INPUT, UP TO 10-CH IP CAMERA INPUT (up to 5 MP)| 6 MONTHS WARRANTY DVR
₱3,397
₱3,597
Specification Details
Motion Detection 2.0 Deep learning-based Motion Detection 2.0 is enabled by default for all analog channels. It can classify human and vehicle and greatly reduce false alarms caused by objects such as leaves and lights. Quick search by object or event type is supported.
Human/Vehicle Analysis Supported
IP Video Input 2-ch (up to 10-ch); up to 5 MP resolution; supports H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 1080p25, 1080p30, 720p25, 720p30
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
HDMI Output 1-ch; 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch; 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input 1-ch RCA (2.0 Vp-p, 1 KΩ); 8-ch via coaxial cable
Audio Output 1-ch RCA (Linear, 1 KΩ)
Two-Way Audio Reuse the first audio input
Synchronous Playback 8-ch
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF; For 720p stream access: 720p/WD1/4CIF/VGA/CIF; For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate – Main Stream 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF @ 15 fps; 720p stream access: 720p/WD1/4CIF/VGA/CIF @ 15 fps; SD stream access: WD1/4CIF/VGA/CIF @ 25 fps (P)/30 fps (N)
Frame Rate – Sub-stream 1080p and 720p stream access: CIF/QVGA @ 15 fps; SD stream access: CIF/QVGA @ 25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 4 Mbps
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Remote Connection 64
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
Total Bandwidth 72 Mbps
Network Interface 1 × RJ45 10/100 Mbps self-adaptive Ethernet interface
SATA 1 SATA interface
Storage Capacity Up to 4 TB capacity for each disk
USB Interface Rear panel: 2 × USB 2.0
Alarm In/Out N/A
Power Supply 12 VDC, 1.5 A
Consumption ≤ 17 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to +131 °F)
Working Humidity 10% to 90%
Dimensions (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight ≤ 1 kg (without HDD, 2.2 lb.)
