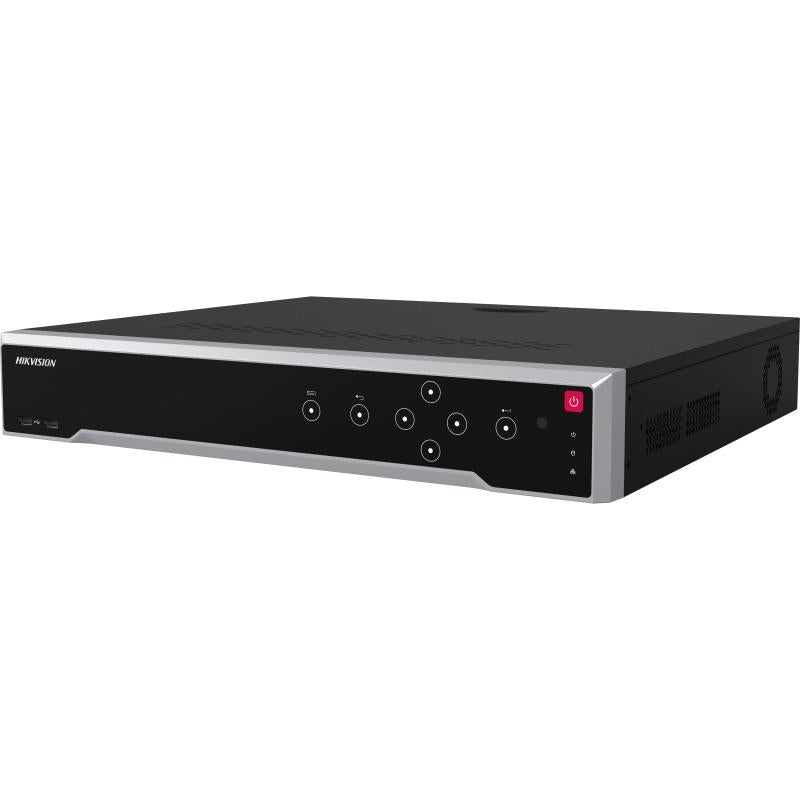

HIKVISION DS-7732NI-I4(B) | 32 CH 1.5U 4K | 12 MONTHS WARRANTY NVR

₱22,197

₱21,420.00 Discounted Price OR Freebie

₱22,197.00 3 Months 0% or Straight Credit Card ( ₱7,399.00 / Mo.)

₱25,415.00 12 Months Credit Card ( ₱2,117.00 / Mo.)

Product variants

For Pre-Order fill-up this form

Guarantee Safe Checkout

HIKVISION DS-7732NI-I4(B) | 32 CH 1.5U 4K | 12 MONTHS WARRANTY NVR

₱22,197

Specifications

32-ch 1.5U 4K NVR

Up to 32 channel IP cameras can be connected
Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity
Only (B) version support 2 HDMI and 1 VGA interfaces, and HDMI interfaces support independent video output
4 HDDs for continuous video recording
Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
Supports dual-stream recording to save time and bandwidth.

Video and Audio

IP Video Input:

Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-7732NI-I4(B), when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.

Incoming Bandwidth: 256 Mbps

Outgoing Bandwidth: 256 Mbps

HDMI 1 Output:

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output

CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4

Recording Resolution:

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-7732NI-I4(B), when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.

Synchronous Playback: 16-ch

Decoding Capability:

1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)

Dual-Stream Recording: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711ulaw/G.711alaw/G.722/G.726

Network

Remote Connection: 128

Network Protocol:

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Camera Access Protocol: ONVIF(Version 2.5), RTSP

Auxiliary Interface

Serial Interface: 1 RS-485 (half-duplex), 1 RS-232

SATA: 4 SATA interfaces

eSATA: N/A (1 eSATA interface is optional)

Capacity: Up to 16 TB capacity for each disk

Alarm In/Out: 16/4 (16/8 is optional)

USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power Supply: 100 to 240 VAC, 50 to 60 Hz

Consumption: ≤ 20 W (without HDD)

Working Temperature: -10 to +55º C (+14 to +131º F)

Working: Humidity: 10 to 90 %

Chassis: 19-inch rack-mounted 1.5U chassis

Dimension (W × D × H): 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")

Weight: ≤ 5 kg (11 lb.)
