Essentials
|
| Product Collection |
Intel® Core™ i7 Processors (14th gen) |
| Code Name |
Products formerly RAPTOR LAKE |
| Vertical Segment |
Desktop |
| Processor Number |

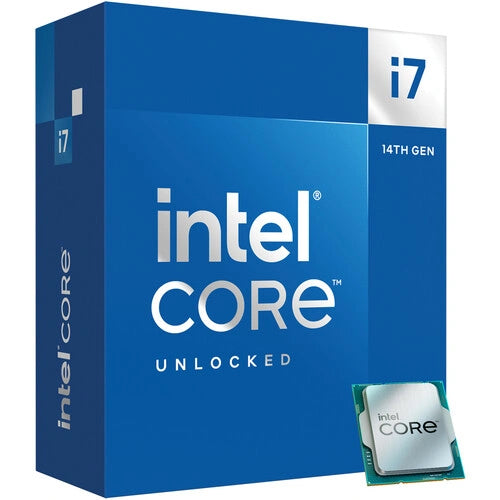

i7-14700K |
| Lithography |
Intel 7 |
| Use Conditions |
PC/Client/Tablet | Workstation |
|
|
| CPU Specifications |
| Total Cores |
20 |
| # of Performance-cores |
8 |
| # of Efficient-cores |
12 |
| Total Threads |
28 |
| Max Turbo Frequency |
5.6 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ |
5.6 GHz |
| Performance-core Max Turbo Frequency |
5.5 GHz |
| Efficient-core Max Turbo Frequency |
4.3 GHz |
| Performance-core Base Frequency |
3.4 GHz |
| Efficient-core Base Frequency |
2.5 GHz |
| Cache |
33 MB Intel® Smart Cache |
| Total L2 Cache |
28 MB |
| Processor Base Power |
125 W |
| Maximum Turbo Power |
253 W |
|
|
| Supplemental Information |
| Marketing Status |
Launched |
| Launch Date |
Q4'23 |
| Embedded Options Available |
No |
|
|
| Memory Specifications |
| Max Memory Size (dependent on memory type) |
192 GB |
| Memory Types |
Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels |
2 |
| Max Memory Bandwidth |
89.6 GB/s |
| ECC Memory Supported ‡ |
Yes |
|
|
| GPU Specifications |
| Processor Graphics ‡ |
Intel® UHD Graphics 770 |
| Graphics Base Frequency |
300 GHz |
| Graphics Max Dynamic Frequency |
1.6 GHz |
| Graphics Output |
eDP 1.4b | DP 1.4a | HDMI 2.1 |
| Execution Units |
32 |
| Max Resolution (HDMI)‡ |
4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ |
7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ |
5120 x 3200 @ 120Hz |
| DirectX* Support |
12 |
| OpenGL* Support |
4.5 |
| OpenCL* Support |
3 |
| Multi-Format Codec Engines |
2 |
| Intel® Quick Sync Video |
Yes |
| Intel® Clear Video HD Technology |
Yes |
| # of Displays Supported ‡ |
4 |
| Device ID |
0xA780 |
|
|
| Expansion Options |
| Direct Media Interface (DMI) Revision |
4 |
| Max # of DMI Lanes |
8 |
| Scalability |
1S Only |
| PCI Express Revision |
5.0 and 4.0 |
| PCI Express Configurations ‡ |
Up to 1x16+4 | 2x8+4 |
| Max # of PCI Express Lanes |
20 |
|
|
| Package Specifications |
| Sockets Supported |
FCLGA1700 |
| Max CPU Configuration |
1 |
| Thermal Solution Specification |
PCG 2020A |
| TJUNCTION |
100°C |
| Package Size |
45.0 mm x 37.5 mm |
|
|
| Advanced Technologies |
| Intel® Gaussian & Neural Accelerator |
3 |
| Intel® Thread Director |
Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ |
Yes |
| Intel® Turbo Boost Technology ‡ |
2 |
| Intel® Hyper-Threading Technology ‡ |
Yes |
| Intel® 64 ‡ |
Yes |
| Instruction Set |
64-bit |
| Instruction Set Extensions |
Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| Idle States |
Yes |
| Enhanced Intel SpeedStep® Technology |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Intel® Volume Management Device (VMD) |
Yes |
|
|
| Security & Reliability |
| Intel® Standard Manageability (ISM) ‡ |
Yes |
| Intel® Control-Flow Enforcement Technology |
Yes |
| Intel® AES New Instructions |
Yes |
| Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Execute Disable Bit ‡ |
Yes |
| Intel® Boot Guard |
Yes |
| Mode-based Execute Control (MBEC) |
Yes |
| Intel® Virtualization Technology (VT-x) ‡ |
Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ |
Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ |
Yes |
