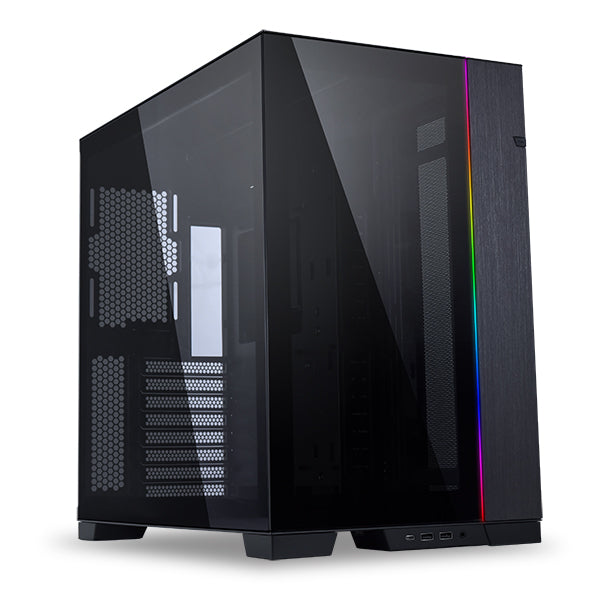

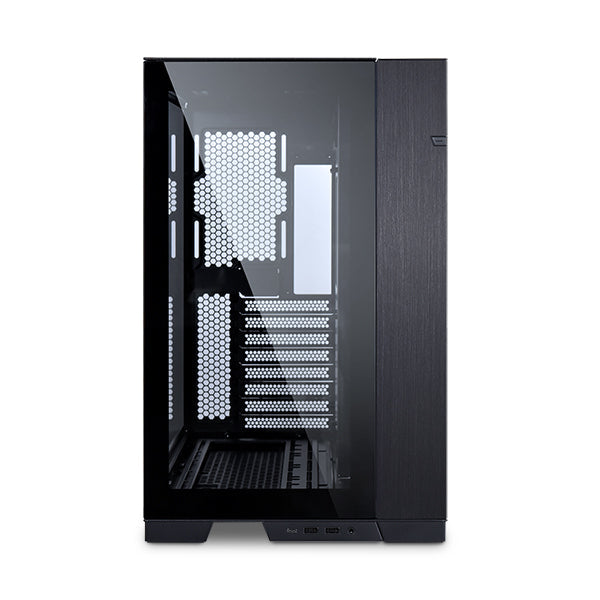

- Full-tower chassis with two modes: Normal Mode/ Reverse Mode
- Front and side tempered glass panels with a removable pilar for a seamless view of components and RGB lighting
- Supports up to 3x 420mm radiators and a maximum of 11 fans
- Offers mounting space for 7 storage drives
- Dual-chamber layout with cable management compartment and three cable holders
- Features a multi-directional power button and movable IO module
- Optional accessories for vertical GPU or upright GPU mounting
FINE MESH, EQUISITE TOUCH
Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.
COMPLETE SEEMLESS VIEW
The O11D EVO XL’s front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case’s structure.
BIG SIZE, GREAT COMPATIBILITY
Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There’s also sufficient cooling with the support for 3 × 420mm radiators.
The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination.
The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard.
WITH WATER COOLING IN MIND
Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes .
CUSTOMIZABLE CABLE MANAGEMENT
The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.
|PRODUCT NAME||O11D EVO XL|
|CASE TYPE||Tower Chassis|
|DIMENSIONS||(D) 522mm x (W) 304mm x (H) 531.9mm|
4.0mm Tempered Glass
|MOTHERBOARD SUPPORT||E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX|
|STORAGE||Behind MB Tray: 3 x 2.5” SSD
Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD
|GPU LENGTH CLEARANCE||460mm (Max.)|
|CPU COOLER HEIGHT CLEARANCE||167mm (Max.)|
|PSU||ATX (Under 220mm)|
|FAN SUPPORT||Top: 3 x 120mm / 3 x 140mm
Side: 3 x 120mm / 3 x 140mm
Bottom: 3 x 120mm / 3 x 140mm
Rear: Up to 2x 120mm
|RADIATOR SUPPORT||Top: 360 / 420 / 240 / 280mm
Side: 360 / 420 / 240 / 280mm
Bottom: 360 / 420 / 240 / 280mm
|I/O PORTS||1 x Power Button
1 x Reset Button
4 x USB 3.0
1 x USB Type C
1 x Audio
1 x LED Color Button
1 x LED Mode Button
|DUST FILTERS||1 x Bottom 1 x Top
2 x Side
