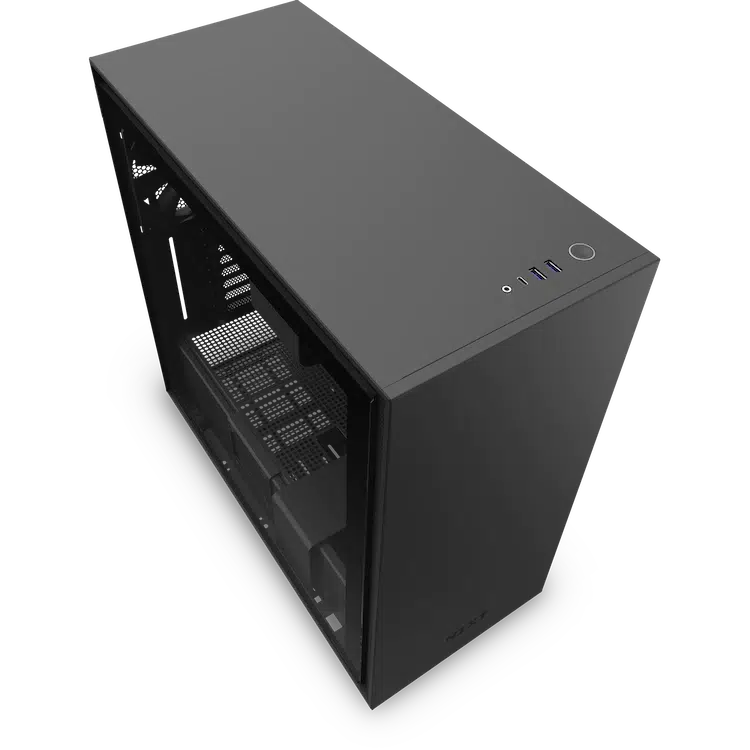

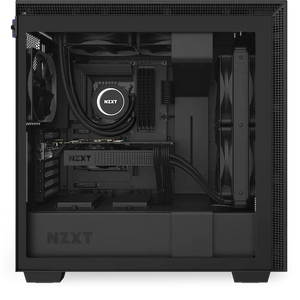

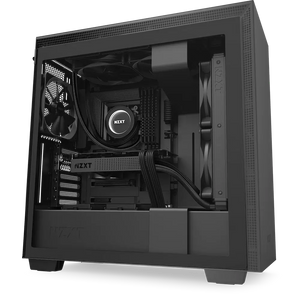

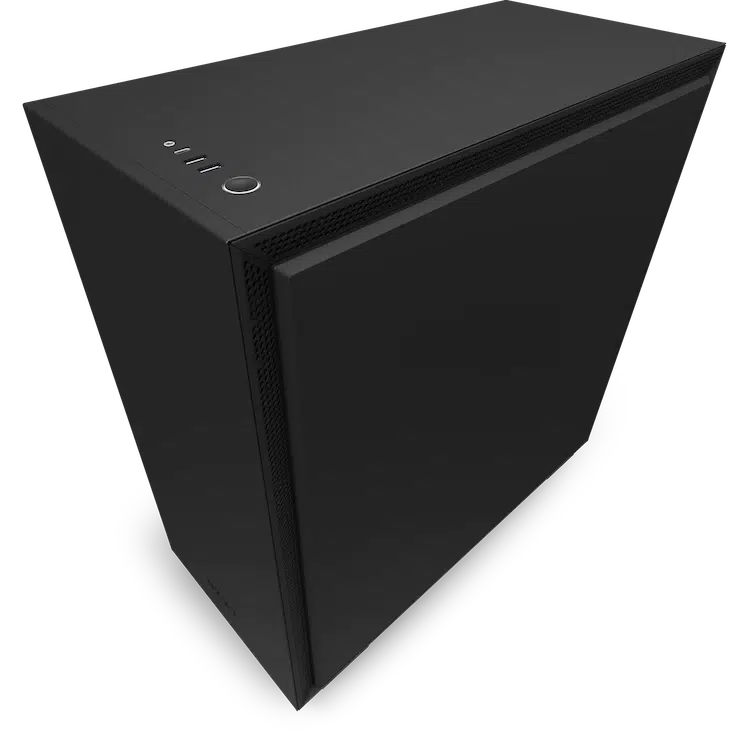

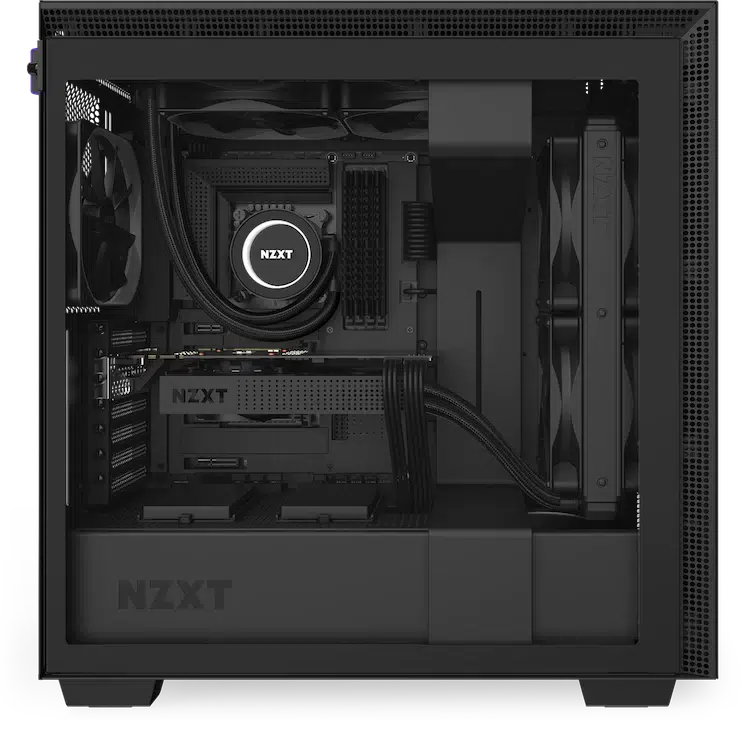

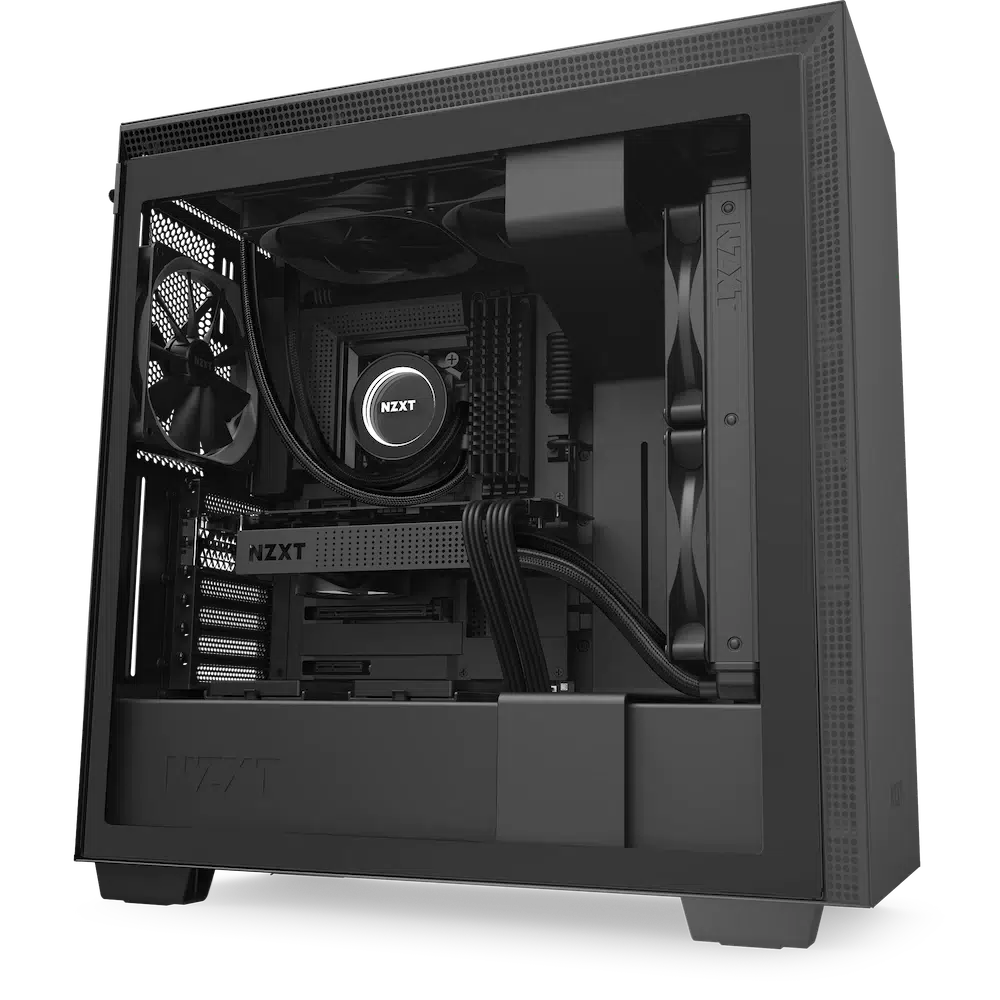

NZXT H710 CA-H710B-B1 BLACK MID TOWER TEMPERED GLASS CASE

DIMENSIONS

• Height: 516mm

• Width: 230mm

• Depth: 494mm

• Weight: 12.1 kg / 26.68 lb

COMPATIBILITY & CLEARANCE

• Max CPU Cooler Clearance: 185mm

• Max GPU Clearance: 413mm

• Front Fan & Radiator Clearance: 60mm

• Top Fan & Radiator Clearance: 30mm

• Cable Management: 18 - 22mm

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A: 2

• USB 3.2 Gen 2 Type-C: 1

• Headset Audio Jack: 1

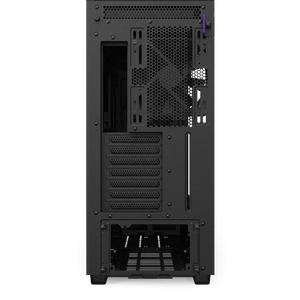

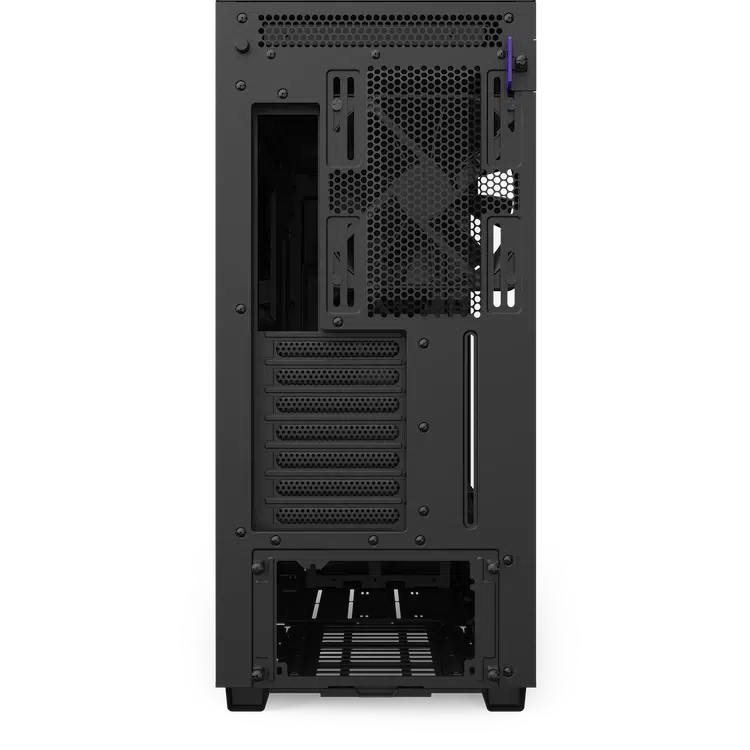

EXPANSION SLOTS

• Standard: 7

• Vertical: -

DRIVE BAYS

• 2.5": 5 + 1

• 3.5": 2 + 1

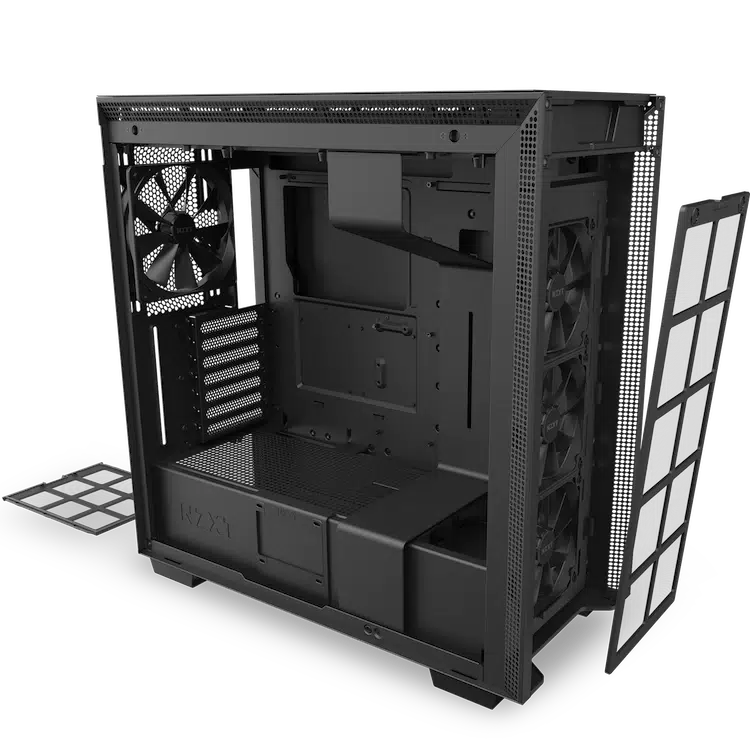

FAN SUPPORT

• Front: 3 x 120mm / 2 x 140mm

• Top: 3 x 120mm / 2 x 140mm

• Rear: 1 x 120mm / 1 x 140mm

• Filters: All air intakes

RADIATOR SUPPORT

• Front: 360mm

• Top: 360mm

• Rear: 140mm

FAN SPECS

• Model: Aer P 140mm (Case Version)

• Speed: 1,000 ¬± 200RPM

• Airflow: 68.95 CFM

• Noise: 29 dBA

• Fan Connector: 3-pin

FAN SPECS

• Model: Aer P 120mm (Case Version)

• Speed: 1,200 ¬± 200RPM

• Airflow: 50.42 CFM

• Noise: 28 dBA

• Fan Connector: 3-pin
