Details

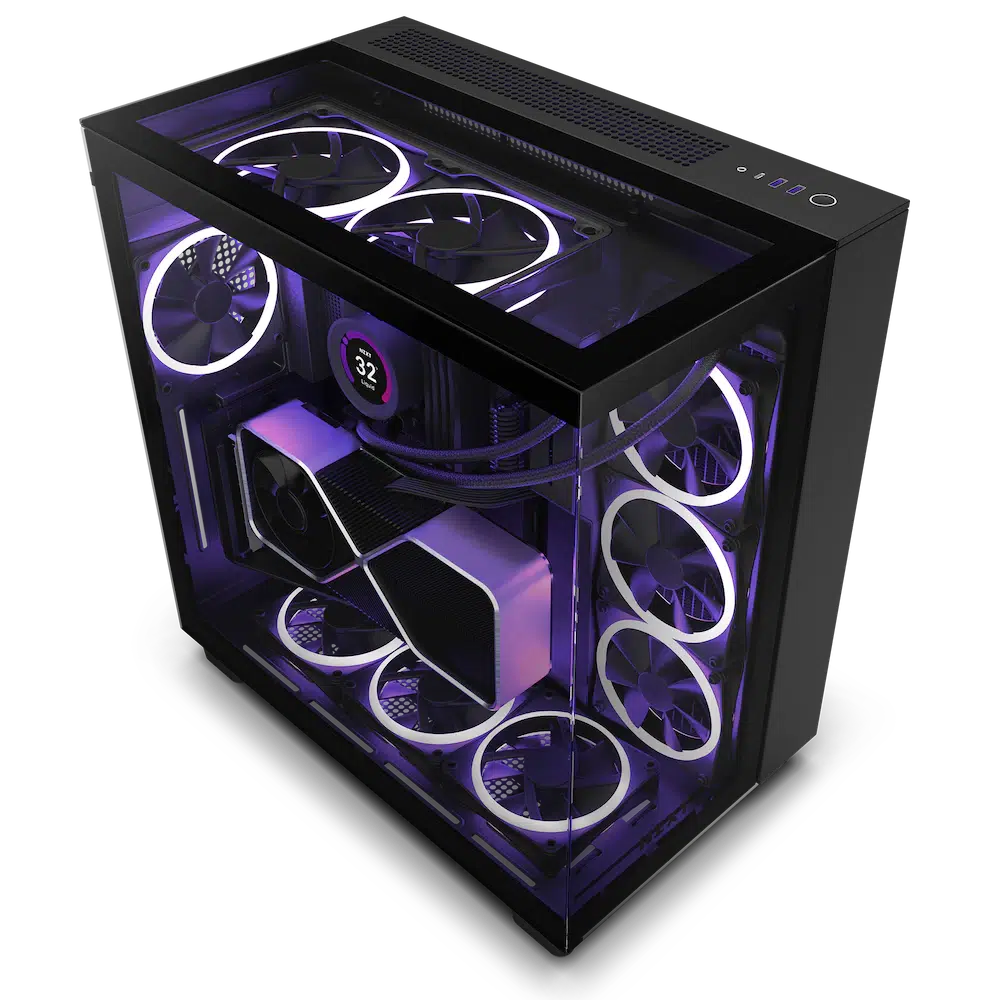

The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Tempered glass top panel and included RGB & Fan Controller
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes three F Series 120mm RGB Duo Fans and one F120Q Fan
KEY SPECS
-
Motherboard Support:Mini-ITX, Micro-ATX, ATX
-
Enclosure Type:Mid-Tower
-
Case Material:SGCC Steel, TUltra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
DIMENSIONS
-
Height:495mm (With Feet)
-
Width:290mm
-
Depth:466mm
-
Weight:13.1 kg
COMPATIBILITY & CLEARANCE
-
CPU Cooler Clearance:Up to 165mm
-
GPU Clearance:Up to 435mm
-
PSU Clearance:200mm
-
Cable Management:91mm
FRONT I/O PORTS
-
USB 3.2 Gen 1 Type-A:2
-
USB 3.2 Gen 2 Type-C:1
-
Headset Audio Jack:1
EXPANSION SLOTS
-
Standard:7
-
Vertical:0
DRIVE BAYS
-
2.5":4+2
-
3.5":2
FAN SUPPORT
-
Side:3 x 120mm
-
Top:3 x 120mm / 2 x 140mm
-
Bottom:3 x 120mm / 2 x 140mm
-
Rear:1 x 120mm
-
Filters:All Air Intakes
RADIATOR SUPPORT
-
Side:Up to 360mm
-
Top:Up to 360mm
-
Bottom:Up to 360mm
-
Rear:Up to 120mm
FAN SPECS
-
Model:F120Q (Case Version)
-
Speed:1200 ± 240RPM
-
Airflow:62.18 CFM
-
Static:1.05 mm - H2O
-
Noise:25.1 dBA
-
Fan Connector:3-pin
FAN SPECS
-
Model:F120RGB Duo
-
Speed:500 ± 1800RPM
-
Airflow:48.58 CFM
-
Static:2.42mm - H2O
-
Noise:29 dBA
-
Fan Connector:4-pin
